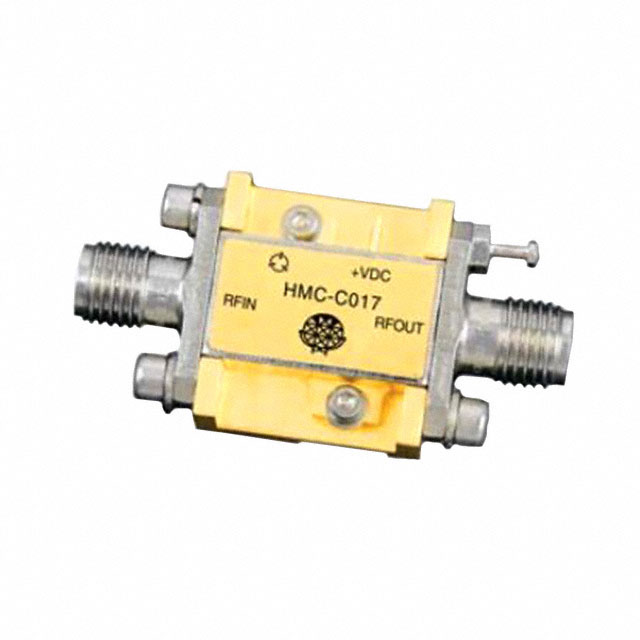

HMC-C017
IC RF AMP VSAT 17GHZ-27GHZ MODManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC-C017 is a high-performance RF amplifier module designed for VSAT applications operating within the 17GHz to 27GHz frequency range. This component boasts a typical gain of 19dB and a noise figure of 3dB at its test frequency. The output third-order intercept point (IP3) is rated at 25dBm, ensuring excellent linearity for demanding communication systems. Powering the device requires a supply voltage between 8V and 16V, with a nominal current draw of 96mA. The HMC-C017 features SMA connectors for easy integration and is housed in a module package. This amplifier finds application in satellite communications, radar systems, and other high-frequency wireless infrastructure where robust RF performance is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, SMA Connectors |
| Mounting Type | Connector Mount |
| Frequency | 17GHz ~ 27GHz |
| RF Type | VSAT |
| Voltage - Supply | 8V ~ 16V |
| Gain | 19dB |
| Current - Supply | 96mA |
| Noise Figure | 3dB |
| P1dB | 15dBm |
| Test Frequency | - |
| Supplier Device Package | Module |
