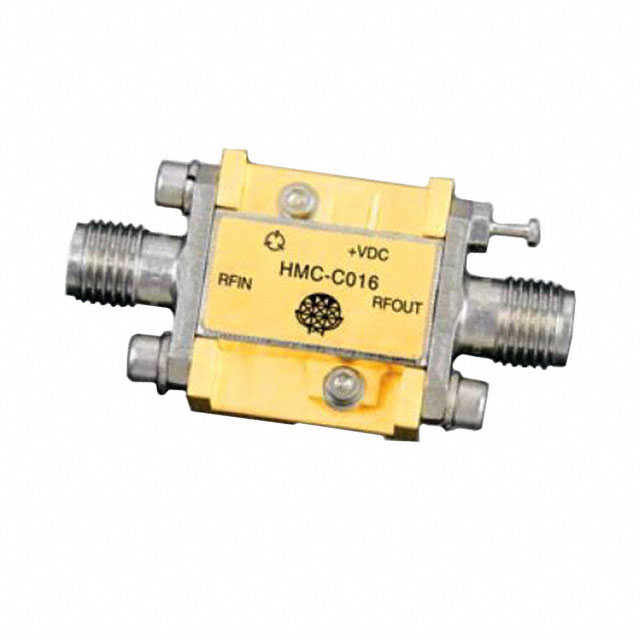

HMC-C016
IC RF AMP VSAT 7GHZ-17GHZ MODULEManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC-C016 is a RF Amplifier module designed for VSAT applications, operating across a frequency range of 7GHz to 17GHz. This component offers a typical gain of 22dB and a P1dB of 14dBm, making it suitable for systems requiring robust signal amplification within this band. The noise figure is rated at 3dB, ensuring minimal signal degradation. Powering the HMC-C016 requires a supply voltage between 8V and 16V, with a typical current draw of 93mA. Mounting is facilitated via SMA connectors. This module is commonly utilized in satellite communication systems and other high-frequency radio applications.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, SMA Connectors |
| Mounting Type | Connector Mount |
| Frequency | 7GHz ~ 17GHz |
| RF Type | VSAT |
| Voltage - Supply | 8V ~ 16V |
| Gain | 22dB |
| Current - Supply | 93mA |
| Noise Figure | 3dB |
| P1dB | 14dBm |
| Test Frequency | 7GHz ~ 17GHz |
| Supplier Device Package | Module |
