HMC-C004
IC RF AMP VSAT 10MHZ-20GHZ MODManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More

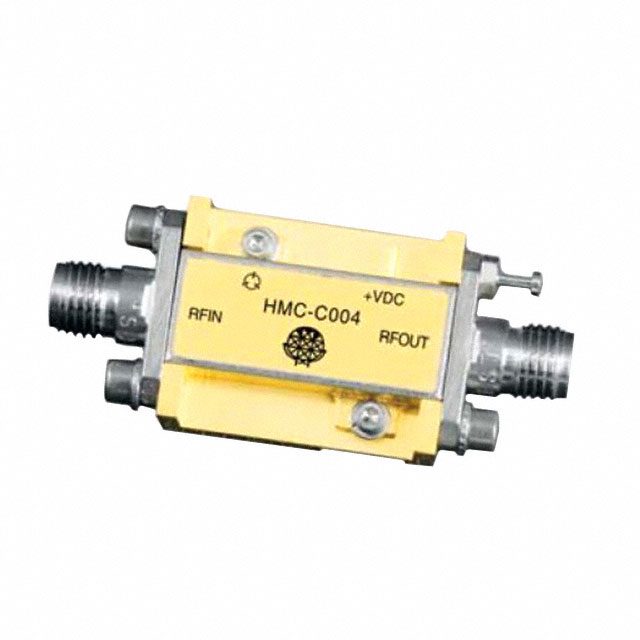

Analog Devices Inc. HMC-C004 is a high-performance RF amplifier module designed for demanding VSAT applications. This component operates across a broad frequency range of 10MHz to 20GHz, providing a nominal gain of 16dB. With a noise figure of 4dB and a P1dB output power of 23dBm, it delivers excellent signal amplification and linearity. The HMC-C004 is supplied in a module package featuring SMA connectors for straightforward integration and is designed for connector mount installation. It requires a 12V supply voltage and draws a current of 195mA. This RF amplifier is suitable for use in satellite communications and other high-frequency signal processing systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, SMA Connectors |
| Mounting Type | Connector Mount |
| Frequency | 10MHz ~ 20GHz |
| RF Type | VSAT |
| Voltage - Supply | 12V |
| Gain | 16dB |
| Current - Supply | 195mA |
| Noise Figure | 4dB |
| P1dB | 23dBm |
| Test Frequency | - |
| Supplier Device Package | Module |
