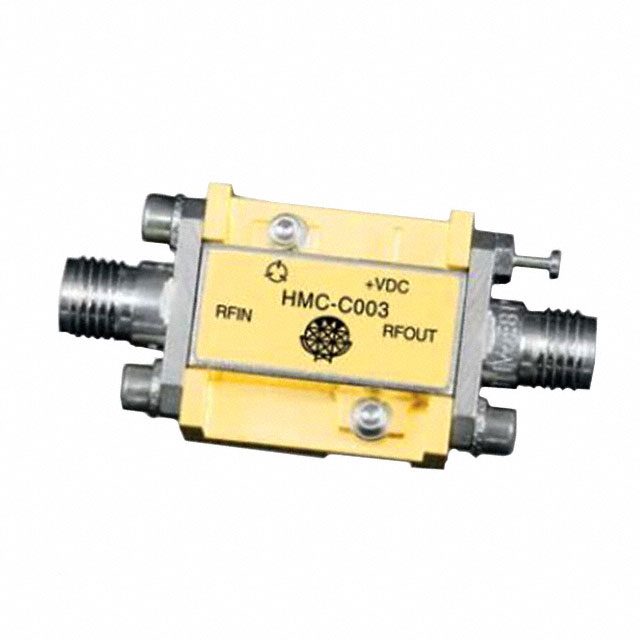

HMC-C003
IC RF AMP VSAT 2GHZ-20GHZ MODULEManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC-C003 is a high-performance RF amplifier module designed for operation across the 2 GHz to 20 GHz frequency range. This component offers a typical small-signal gain of 15 dB and a P1dB output power of 26 dBm, making it suitable for demanding VSAT applications. With a noise figure of 6 dB, the HMC-C003 ensures excellent signal integrity. The module operates from a 12V supply, drawing approximately 310mA. It features SMA connectors for robust mounting and connectivity, ideal for challenging environments. This RF amplifier finds application in satellite communications and other high-frequency systems requiring reliable amplification.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, SMA Connectors |
| Mounting Type | Connector Mount |
| Frequency | 2GHz ~ 20GHz |
| RF Type | VSAT |
| Voltage - Supply | 12V |
| Gain | 15dB |
| Current - Supply | 310mA |
| Noise Figure | 6dB |
| P1dB | 26dBm |
| Test Frequency | 2GHz ~ 20GHz |
| Supplier Device Package | Module |
