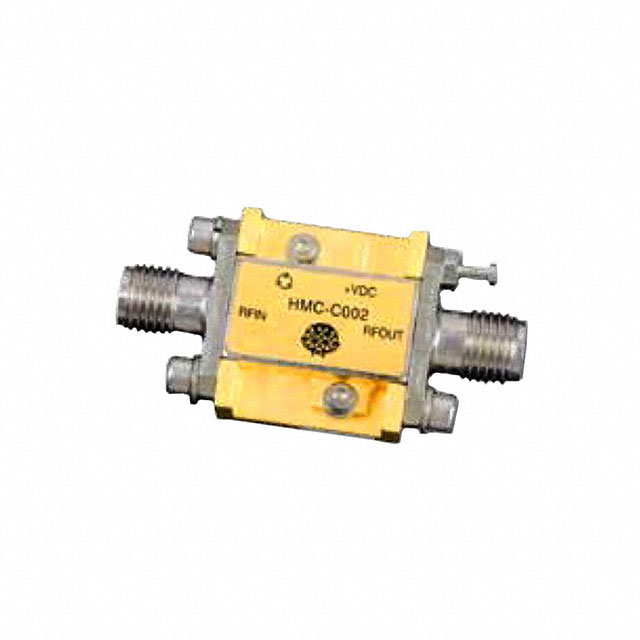

HMC-C002
IC RF AMP VSAT 2GHZ-20GHZ MODULEManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. HMC-C002 is a high-performance RF amplifier module operating across a broad frequency range of 2GHz to 20GHz. This component is engineered for demanding VSAT applications, offering a typical gain of 14dB and a noise figure of 3dB, crucial for maintaining signal integrity in satellite communication systems. The module delivers a P1dB output power of 18dBm, ensuring robust signal amplification. Designed with convenience in mind, it features SMA connectors for straightforward mounting. Powering this device requires a 12V supply, drawing a quiescent current of 93mA. Its advanced design makes it suitable for use in defense, aerospace, and telecommunications sectors where precise and reliable RF amplification is paramount.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, SMA Connectors |
| Mounting Type | Connector Mount |
| Frequency | 2GHz ~ 20GHz |
| RF Type | VSAT |
| Voltage - Supply | 12V |
| Gain | 14dB |
| Current - Supply | 93mA |
| Noise Figure | 3dB |
| P1dB | 18dBm |
| Test Frequency | 2GHz ~ 20GHz |
| Supplier Device Package | Module |
