ADL6337ACRZD-R7
36DB GAIN, 0.5-5.2GHZ TRANSMIT VManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
RF Amplifier IC 2G/3G/4G, FDD, LTE, TDD 500MHz ~ 1GHz 32-LFCSP (5x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

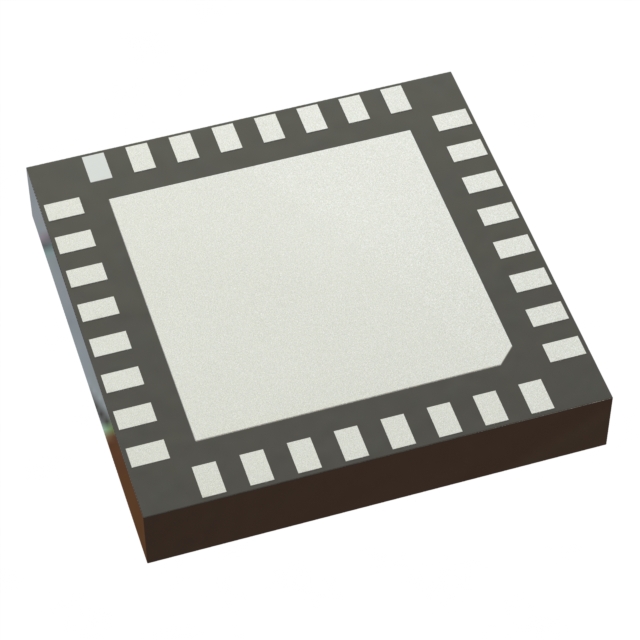

| Package / Case | 32-VFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Frequency | 500MHz ~ 1GHz |
| RF Type | 2G/3G/4G, FDD, LTE, TDD |
| Voltage - Supply | 4.75V ~ 5.25V |
| Gain | 37.4dB |
| Current - Supply | 460mA |
| Noise Figure | 5.3dB |
| P1dB | 26.1dBm |
| Test Frequency | 500MHz ~ 1GHz |
| Supplier Device Package | 32-LFCSP (5x5) |
| Grade | - |
| Qualification | - |
