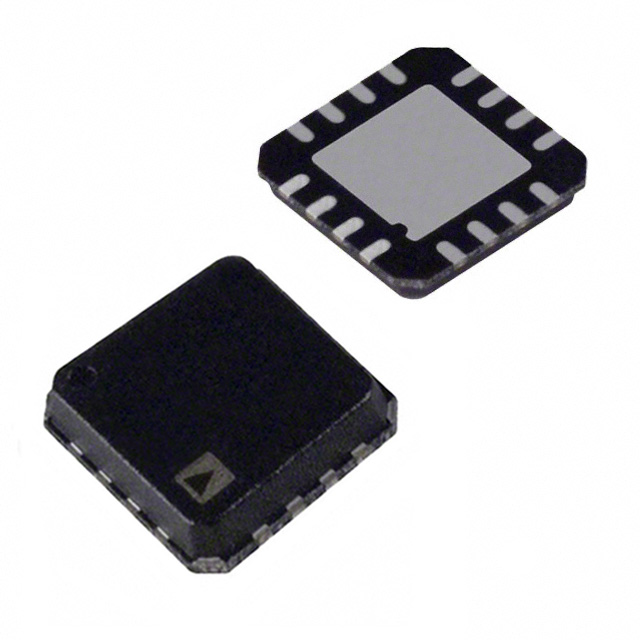

ADL5570ACPZ-R7
IC AMP WIMAX 2.3-2.4GHZ 16LFCSPManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. ADL5570ACPZ-R7 is a high-linearity, broadband RF amplifier designed for WiMAX and WiBro applications within the 2.3GHz to 2.4GHz frequency range. This component features a nominal gain of 29dB and a P1dB of 31dBm, ensuring robust performance in demanding wireless infrastructure and communication systems. The device operates from a supply voltage of 3.2V to 4.2V with a typical current draw of 130mA. Packaged in a 16-LFCSP-VQ (4x3.75) with an exposed pad for enhanced thermal management, the ADL5570ACPZ-R7 is supplied on tape and reel for automated assembly processes. Its superior linearity and gain characteristics make it suitable for base station and subscriber equipment in wireless broadband deployments.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Frequency | 2.3GHz ~ 2.4GHz |
| RF Type | WiMAX / WiBro |
| Voltage - Supply | 3.2V ~ 4.2V |
| Gain | 29dB |
| Current - Supply | 130mA |
| Noise Figure | - |
| P1dB | 31dBm |
| Test Frequency | - |
| Supplier Device Package | 16-LFCSP-VQ (4x3.75) |
