ADL5323ACPZ-WP
IC AMP GAIN 1.7-2.4GHZ 8-LFCSPManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More

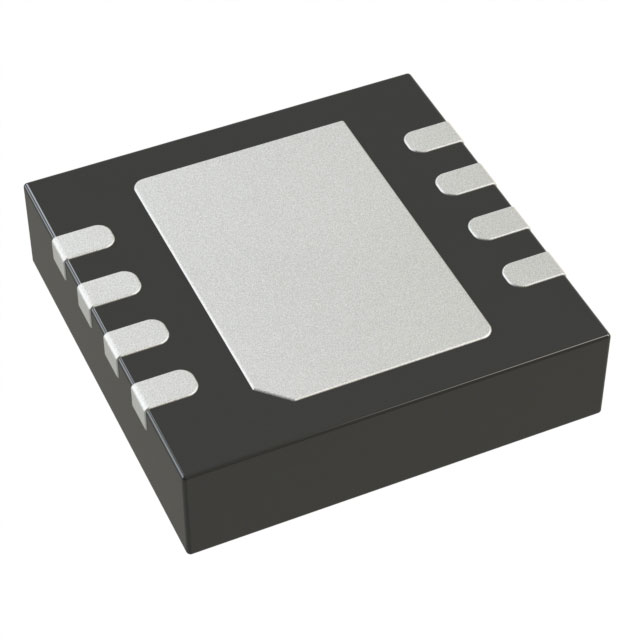

Analog Devices Inc. ADL5323ACPZ-WP is a high-performance RF amplifier designed for operation across the 1.7 GHz to 2.4 GHz frequency range. This component, supplied in an 8-LFCSP-VD (3x3) package, offers a typical gain of 20 dB and operates from a 5V supply with a current draw of 320mA. Its robust design makes it suitable for demanding applications within the cellular, CDMA2000, W-CDMA, and GSM communication systems. The surface mount form factor facilitates integration into compact board designs.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 8-VFDFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Frequency | 1.7GHz ~ 2.4GHz |
| RF Type | Cellular, CDMA2000, W-CDMA, GSM |
| Voltage - Supply | 5V |
| Gain | 20dB |
| Current - Supply | 320mA |
| Supplier Device Package | 8-LFCSP-VD (3x3) |
