ADL5321XRKZ

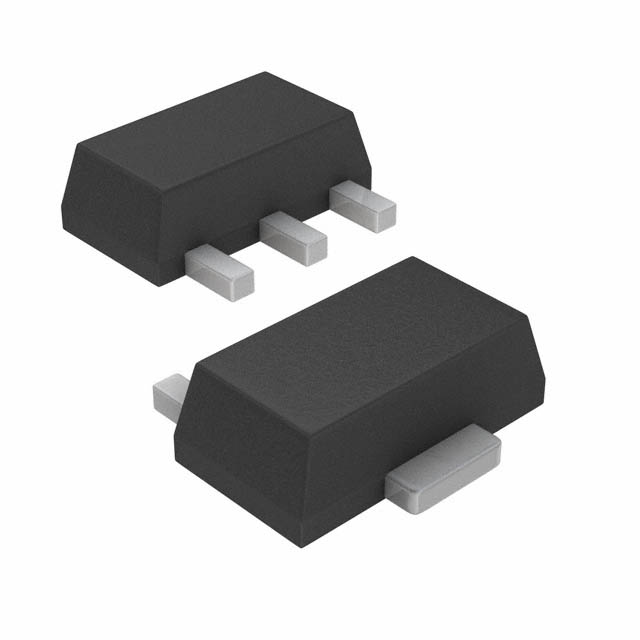

IC AMP CELL 2.3GHZ-4GHZ SOT89-3Manufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
The Analog Devices Inc. ADL5321XRKZ is a high-performance RF amplifier designed for cellular and wireless infrastructure applications. This component operates across a frequency range of 2.3GHz to 4GHz, supporting standards including CDMA, GSM, ISM, PCS, W-CDMA, and WLL. Key specifications include a gain of 13.2dB to 14.6dB at 2.6GHz and a P1dB output power of 25.7dBm. The noise figure is rated at 4dB. The device is housed in a compact SOT-89-3 (TO-243AA) surface-mount package, supplied in trays. It requires a supply voltage between 4.5V and 5.5V, with a typical current draw of 90mA to 100mA.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | TO-243AA |
| Mounting Type | Surface Mount |
| Frequency | 2.3GHz ~ 4GHz |
| RF Type | Cellular, CDMA, GSM, ISM, PCS, W-CDMA AND WLL |
| Voltage - Supply | 4.5V ~ 5.5V |
| Gain | 13.2dB ~ 14.6dB |
| Current - Supply | 90mA ~ 100mA |
| Noise Figure | 4dB |
| P1dB | 25.7dBm |
| Test Frequency | 2.6GHz |
| Supplier Device Package | SOT-89-3 |
