AD8432ACPZ-RL
IC RF AMP VFB 200MHZ 24LFCSPManufacturer: Analog Devices Inc.
Categories: RF Amplifiers
Quality Control: Learn More
Analog Devices Inc. AD8432ACPZ-RL is a high-performance voltage feedback RF amplifier designed for demanding applications. This component operates with a supply voltage range of 4.5V to 5.5V and draws a mere 24mA of quiescent current. Featuring a bandwidth of 200MHz, it delivers a typical gain of 24.08dB at 10MHz, with a noise figure of 2.8dB and a P1dB compression point of 7.7dBm. The AD8432ACPZ-RL is supplied in a compact 24-LFCSP (4x4) package suitable for surface mount assembly and is provided on a tape and reel for automated manufacturing processes. This amplifier finds utility in various industrial and communication systems requiring precise RF signal amplification.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

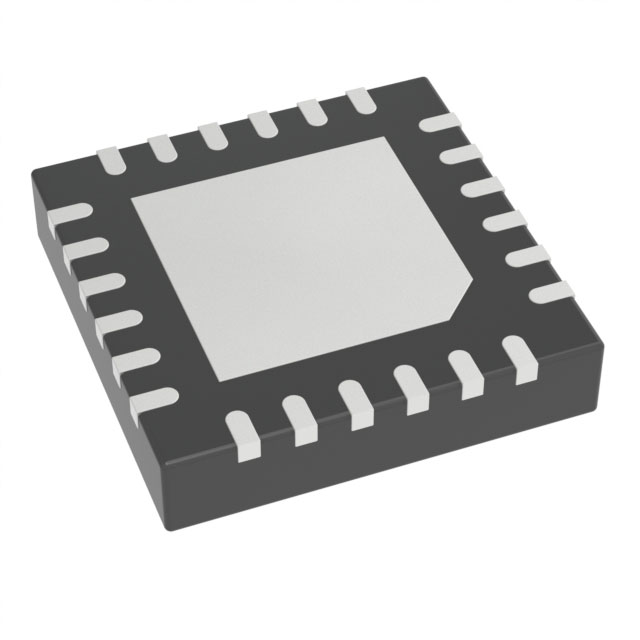

| Package / Case | 24-WFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Frequency | 200MHz |
| RF Type | Voltage Feedback |
| Voltage - Supply | 4.5V ~ 5.5V |
| Gain | 24.08dB |
| Current - Supply | 24mA |
| Noise Figure | 2.8dB |
| P1dB | 7.7dBm |
| Test Frequency | 10MHz |
| Supplier Device Package | 24-LFCSP (4x4) |
