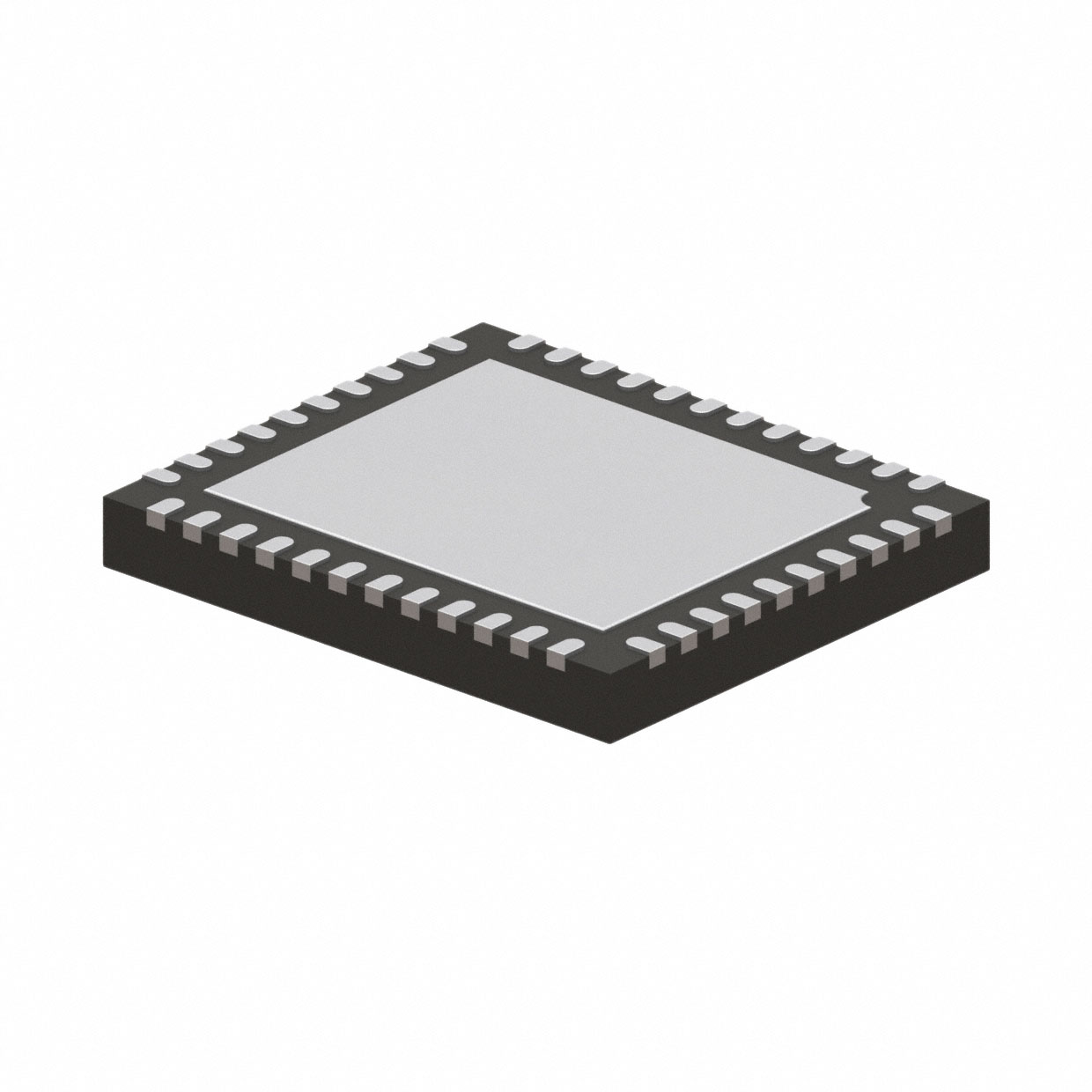

LTC2972IUJF#TRPBF
2-CHANNEL PMBUS POWER SYSTEM MANManufacturer: Analog Devices Inc.
Categories: Power Supply Controllers, Monitors
Quality Control: Learn More
Analog Devices Inc. LTC2972IUJF-TRPBF is a 2-channel PMBus power system manager. This sophisticated device integrates power supply monitoring, sequencing, and supervision capabilities within a compact 44-QFN (6x7) package. Designed for demanding applications, it supports input voltages from 4.5V to 15V and offers flexible supply voltage options of 3.3V and 4.5V to 15V. The LTC2972IUJF-TRPBF operates with a low supply current of 9 mA, making it suitable for power-sensitive designs. Its surface mount configuration and 44-WFQFN Exposed Pad package facilitate efficient board integration. This component finds extensive use in industrial automation, telecommunications infrastructure, and data center power management systems. The part is supplied in a Tape & Reel (TR) for high-volume manufacturing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 44-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Voltage - Input | 4.5V ~ 15V |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3.3V, 4.5V ~ 15V |
| Applications | Monitor, Sequencer, Supervisor |
| Supplier Device Package | 44-QFN (6x7) |
| Current - Supply | 9 mA |
| Programmable | Not Verified |
