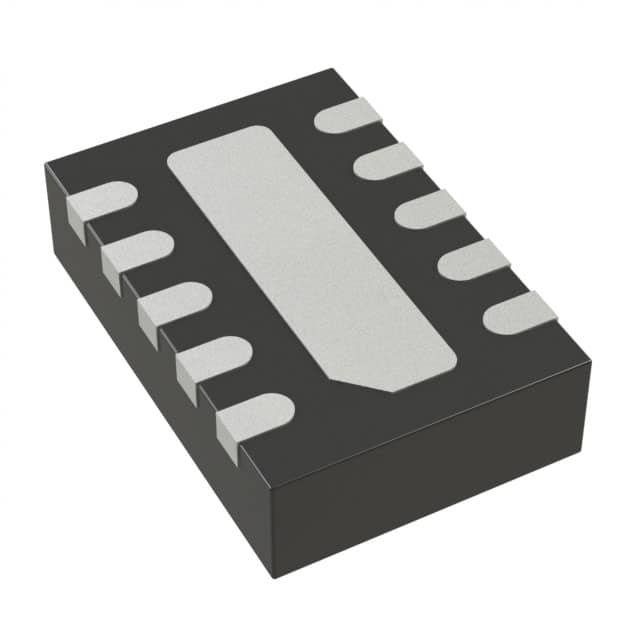

LTC2955IDDB-2#TRPBF
IC PB ON/OFF CONTR0LLER 10DFNManufacturer: Analog Devices Inc.
Categories: Power Supply Controllers, Monitors
Quality Control: Learn More
Analog Devices Inc. presents the LTC2955IDDB-2-TRPBF, a highly integrated power supply controller designed for efficient push-button and on/off control. This component, part of Analog Devices' power management solutions, operates with an exceptionally low supply current of 1.2 µA (typical), minimizing quiescent power consumption. Its versatile input voltage range of 1.5V to 36V, with a tolerance up to ±36V, accommodates a wide spectrum of power sources. The LTC2955IDDB-2-TRPBF is housed in a compact 10-DFN (3x2) package with an exposed pad, facilitating robust surface mount integration. Operating across an industrial temperature range of -40°C to 85°C, this device is well-suited for applications in consumer electronics, industrial control systems, and battery-powered devices where precise power sequencing and control are paramount. The component is supplied in a Tape & Reel (TR) configuration for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-WFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Voltage - Input | ±36V |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.5V ~ 36V |
| Applications | Push Button, On/Off Controller |
| Supplier Device Package | 10-DFN (3x2) |
| Current - Supply | 1.2 µA |
| Programmable | Not Verified |
