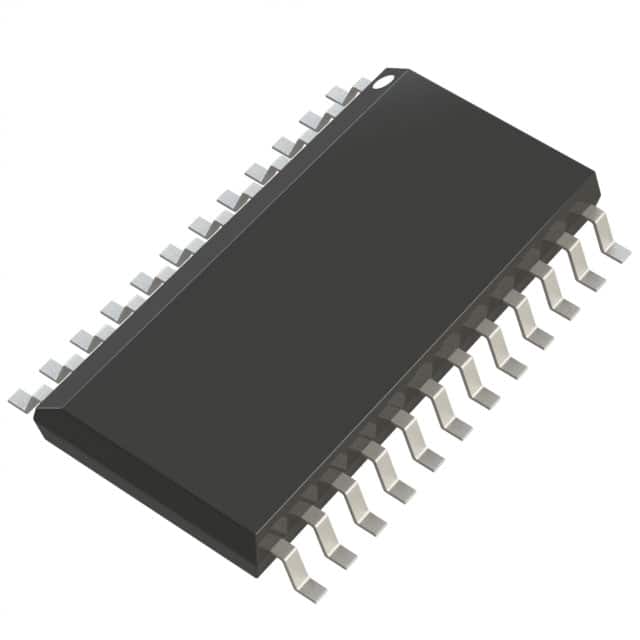

ADP1074WARWZ-R7
24-LEAD STANDARD SMALL OUTLINE PManufacturer: Analog Devices Inc.
Categories: Power Supply Controllers, Monitors
Quality Control: Learn More
Analog Devices Inc. ADP1074WARWZ-R7 is a high-performance synchronous forward controller designed for advanced power supply applications. This component facilitates efficient power conversion, commonly utilized in industrial, automotive, and communication infrastructure. Featuring a wide input voltage range of 4.7V to 60V and a supply voltage range of 4.5V to 36V, it offers robust operation across demanding environmental conditions, operating from -40°C to 125°C. The device is presented in a 24-lead standard small outline package (SOIC) with a 7.50mm width, suitable for surface mount assembly. Its low supply current of 18 mA contributes to improved power efficiency. The ADP1074WARWZ-R7 is supplied on tape and reel for automated manufacturing processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Voltage - Input | 4.7V ~ 60V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply | 4.5V ~ 36V |
| Applications | Synchronous Forward Controller |
| Supplier Device Package | 24-SOIC |
| Current - Supply | 18 mA |
| Programmable | Not Verified |
