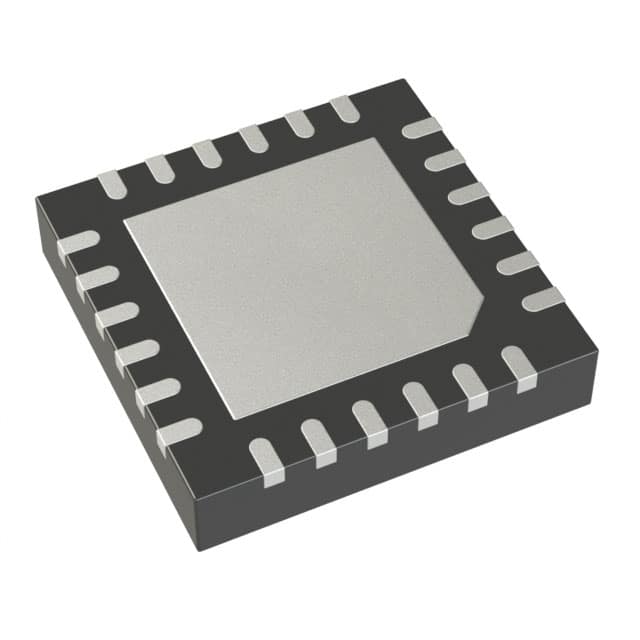

LTC9101AUF-2#PBF
POE PSE CONTROLLERManufacturer: Analog Devices Inc.
Categories: Power Over Ethernet (PoE) Controllers
Quality Control: Learn More
The Analog Devices Inc. LTC9101AUF-2-PBF is a 24-channel Power Sourcing Equipment (PSE) controller designed to manage Power over Ethernet (PoE) distribution. This component supports IEEE 802.3af, 802.3at (PoE+), and 802.3bt standards, enabling power delivery to a wide range of network devices. It features a 53V to 57V supply voltage range and operates with a typical quiescent current of 40mA. The LTC9101AUF-2-PBF is housed in a 24-QFN (4x4) package with an exposed pad for efficient heat dissipation and is designed for surface mount applications. This controller is suitable for high-density PoE deployments in enterprise networking, telecommunications infrastructure, and industrial automation systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Controller (PSE) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 53V ~ 57V |
| Current - Supply | 40mA |
| Internal Switch(s) | No |
| Standards | 802.3at (PoE+), 802.3af (PoE), 802.3bt |
| Supplier Device Package | 24-QFN (4x4) |
| Auxiliary Sense | No |
| Number of Channels | 24 |
