ADP1290ACBZ-R7
IC PWR SWITCH N-CHAN 1:1 6WLCSPManufacturer: Analog Devices Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 N-Channel 2A 6-WLCSP (1.45x0.95)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |

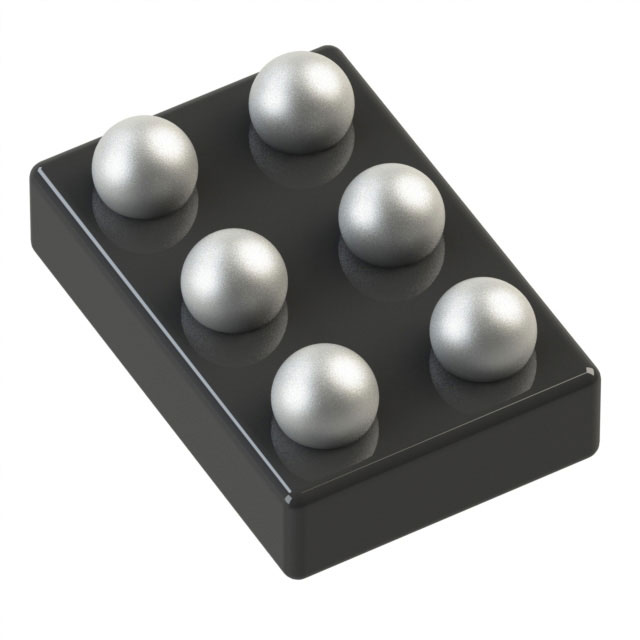

| Package / Case | 6-WFBGA, WLCSP |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 105°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 40mOhm |
| Input Type | - |
| Voltage - Load | 2.3V ~ 13.2V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 6-WLCSP (1.45x0.95) |
| Fault Protection | - |
