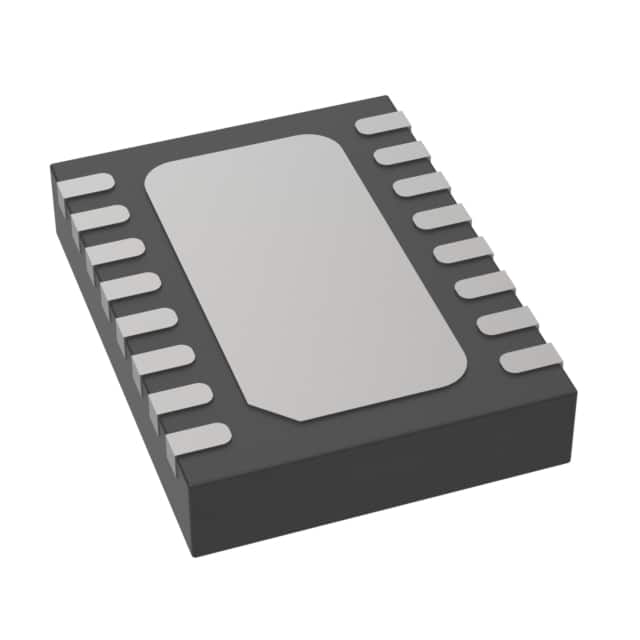

LTC4353IDE#TRPBF
IC OR CTRLR N-CH 2CH 16DFNManufacturer: Analog Devices Inc.
Categories: OR Controllers, Ideal Diodes
Quality Control: Learn More
The Analog Devices Inc. LTC4353IDE-TRPBF is a dual-channel N-Channel OR Controller designed for current sharing applications. This component facilitates the parallel connection of two power sources, ensuring efficient power distribution and redundancy. Featuring a broad operating voltage range of 2.9V to 18V and a low quiescent current of 1.5 mA, it is suitable for demanding applications. The device offers fast switching speeds with typical ON delay of 400 ns and OFF delay of 300 ns. Its 2:2 input-to-output ratio is ideal for implementing redundant power supplies and telecom infrastructure. The LTC4353IDE-TRPBF is supplied in a compact 16-DFN (4x3) package on tape and reel, designed for surface mount installation. Its N-Channel FET type and robust design make it a critical component for system reliability.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Current Sharing Controller |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.9V ~ 18V |
| Applications | Redundant Power Supplies, Telecom Infrastructure |
| Internal Switch(s) | No |
| FET Type | N-Channel |
| Delay Time - ON | 400 ns |
| Delay Time - OFF | 300 ns |
| Ratio - Input:Output | 2:2 |
| Supplier Device Package | 16-DFN (4x3) |
| Current - Supply | 1.5 mA |
