LTC4353CDE#PBF
IC OR CTRLR LOAD SHARE 16DFNManufacturer: Analog Devices Inc.
Categories: OR Controllers, Ideal Diodes
Quality Control: Learn More
Analog Devices Inc. LTC4353CDE-PBF is a 2:2 current sharing controller designed for efficient load distribution in redundant power systems. This N-Channel FET controller operates with a supply voltage range of 2.9V to 18V and consumes a quiescent current of 1.5 mA. Featuring internal switches, it simplifies system design by integrating the ORing functionality. The device offers typical turn-on delay of 400 ns and turn-off delay of 300 ns, crucial for fast response in power failover scenarios. Packaged in a 16-DFN (4x3) with an exposed pad, the LTC4353CDE-PBF is suitable for surface mount applications. Its capabilities make it ideal for use in demanding sectors such as telecom infrastructure and redundant power supply architectures.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |

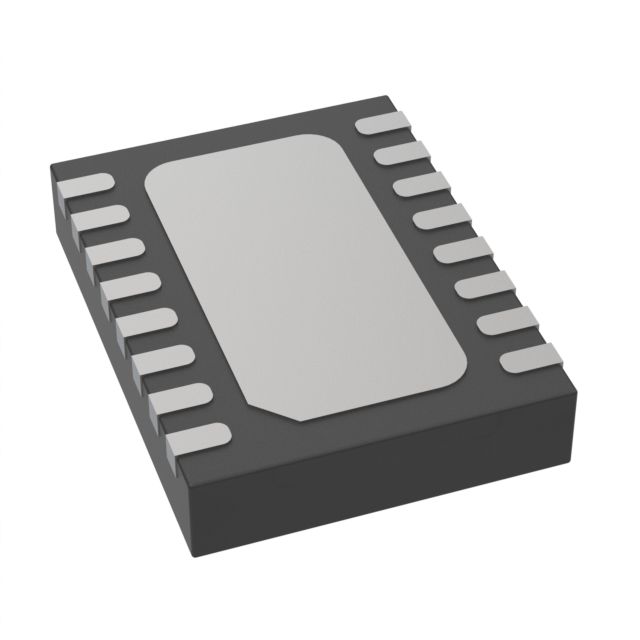

| Package / Case | 16-WFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Current Sharing Controller |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 2.9V ~ 18V |
| Applications | Redundant Power Supplies, Telecom Infrastructure |
| Internal Switch(s) | No |
| FET Type | N-Channel |
| Delay Time - ON | 400 ns |
| Delay Time - OFF | 300 ns |
| Current - Output (Max) | - |
| Ratio - Input:Output | 2:2 |
| Supplier Device Package | 16-DFN (4x3) |
| Current - Supply | 1.5 mA |
