ADMP510ACEZ-RL7
MIC MEMS ANALOG OMNI -38DBManufacturer: Analog Devices Inc.
Categories: Microphones
Quality Control: Learn More
60 Hz ~ 20 kHz Analog Microphone MEMS (Silicon) 1.5 V ~ 3.3 V Omnidirectional (-38dB ±2dB @ 94dB SPL) Solder Pads
Additional Information
Series: ADMP510RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Output Type | Analog |
| Size / Dimension | 0.132"" L x 0.098"" W (3.35mm x 2.50mm) |
| Sensitivity | -38dB ±2dB @ 94dB SPL |
| Shape | Rectangular |
| Type | MEMS (Silicon) |
| S/N Ratio | 65dB |
| Termination | Solder Pads |
| Direction | Omnidirectional |
| Ratings | - |
| Port Location | Bottom |
| Height (Max) | 0.039"" (0.98mm) |
| Impedance | 350 Ohms |
| Current - Supply | 250 µA |
| Voltage Range | 1.5 V ~ 3.3 V |
| Frequency Range | 60 Hz ~ 20 kHz |
Request a Quote
Clients Also Buy

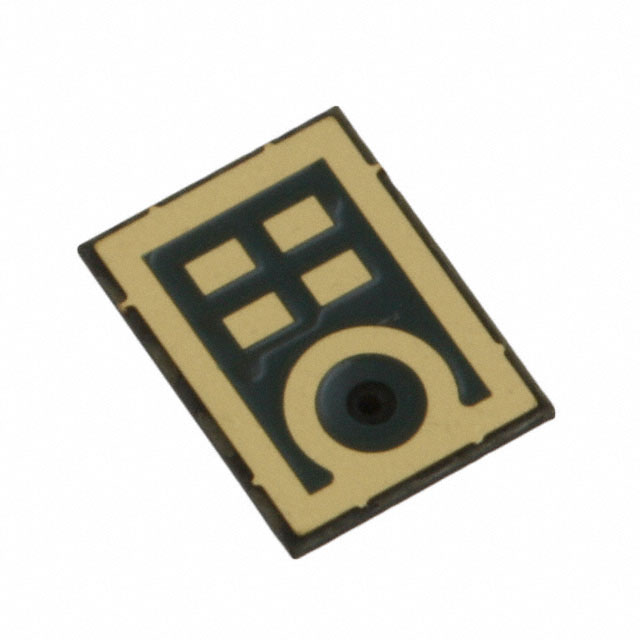

ADMP621ACEZ-RL
MIC MEMS DIGITAL PDM OMNI -46DB

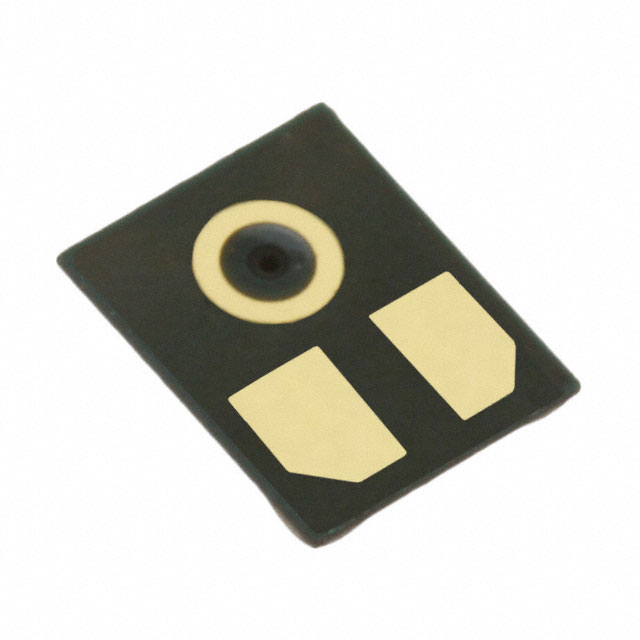

ADMP404ACEZ-RL7
