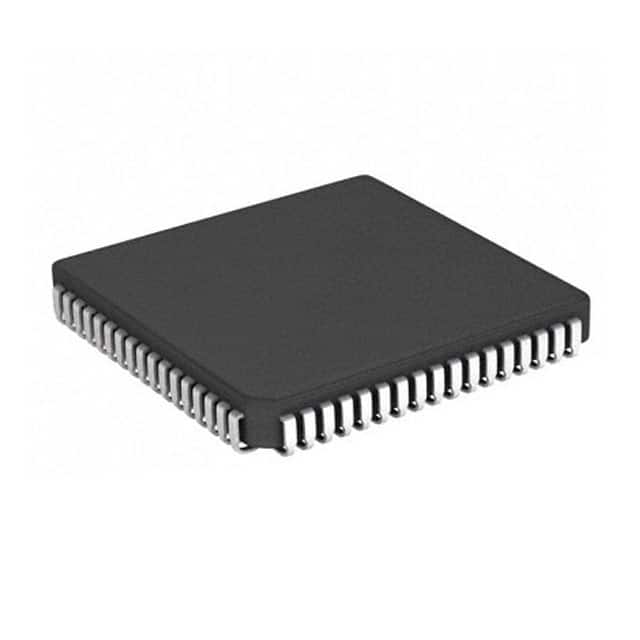

IA80C152BDPLC68IR1
IC MCU 8BIT ROMLESS 68LCCManufacturer: Analog Devices Inc.
Categories: Microcontrollers
Quality Control: Learn More
Analog Devices Inc. IA80C152BDPLC68IR1 is an 8-bit microcontroller featuring a ROMless architecture. This component operates on the 8051 core at a maximum speed of 16.5MHz. It offers 256 x 8 RAM and 64K x 8 EEPROM for data storage. Connectivity options include EBI/EMI and UART/USART. The device includes DMA peripherals. With 52 I/O pins, it is housed in a 68-PLCC (24.21x24.21) surface-mount package. The operating temperature range is -40°C to 85°C (TA), and it requires a supply voltage of 4.5V to 5.5V. This microcontroller is suitable for applications in industrial automation and telecommunications equipment.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 68-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Speed | 16.5MHz |
| Program Memory Size | - |
| RAM Size | 256 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | ROMless |
| EEPROM Size | 64K x 8 |
| Core Processor | 8051 |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Connectivity | EBI/EMI, UART/USART |
| Peripherals | DMA |
| Supplier Device Package | 68-PLCC (24.21x24.21) |
| Number of I/O | 52 |
| Programmable | Not Verified |
