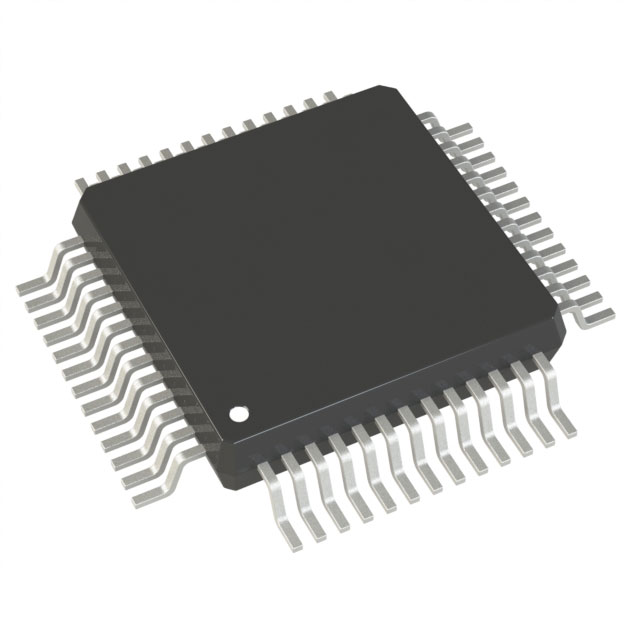

ADUC847BS8-3
IC MCU 8BIT 8KB FLASH 52MQFPManufacturer: Analog Devices Inc.
Categories: Microcontrollers
Quality Control: Learn More
Analog Devices Inc. ADUC847BS8-3 is an 8-Bit MicroConverter® ADuC8xx series microcontroller featuring an 8052 core. This device operates at 12.58MHz and offers 8KB of FLASH program memory, 4KB of EEPROM, and 2.25KB of RAM. It includes integrated analog-to-digital converters with up to 10 channels of 24-bit resolution and digital-to-analog converters with 1x 12-bit and 2x 16-bit outputs. Connectivity options include I2C, SPI, and UART/USART interfaces. Peripherals include Power-On Reset (POR), Power Supply Monitoring (PSM), Pulse Width Modulation (PWM), a temperature sensor, and a Watchdog Timer (WDT). The ADUC847BS8-3 is supplied in a 52-MQFP (10x10) surface-mount package, operates from a 2.7V to 3.6V supply, and is qualified for operation across a -40°C to 125°C temperature range. This component is suitable for applications in industrial automation, sensor data acquisition, and consumer electronics.
Additional Information
Series: MicroConverter® ADuC8xxRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | 52-QFP |
| Mounting Type | Surface Mount |
| Speed | 12.58MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 2.25K x 8 |
| Operating Temperature | -40°C ~ 125°C |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | 8052 |
| Data Converters | A/D 10x24b; D/A 1x12b, 2x16b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | POR, PSM, PWM, Temp Sensor, WDT |
| Supplier Device Package | 52-MQFP (10x10) |
| Grade | - |
| Number of I/O | 34 |
| Programmable | Not Verified |
| Qualification | - |
