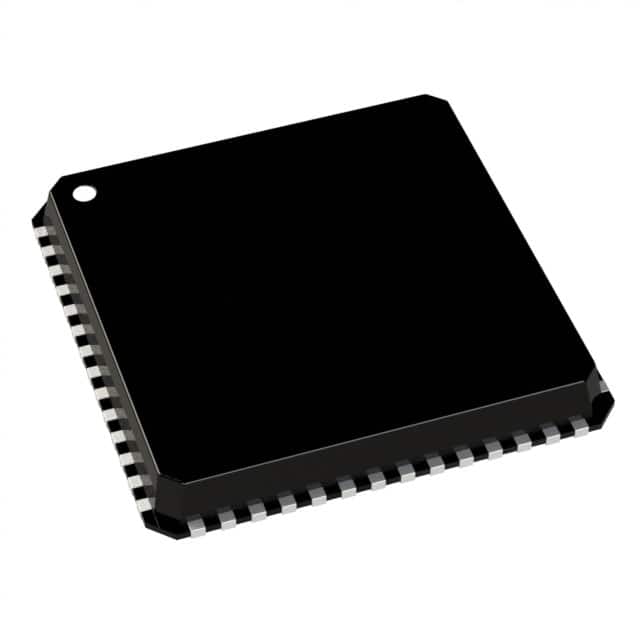

ADUC834BCP
IC MCU 8BIT 62KB FLASH 56LFCSPManufacturer: Analog Devices Inc.
Categories: Microcontrollers
Quality Control: Learn More
Analog Devices Inc. MicroConverter® ADuC8xx series microcontroller, part number ADUC834BCP, is an 8-bit 8052 core device operating at 12.58MHz. This Flash memory microcontroller features 62KB of program memory and 2.25KB of RAM. It integrates multiple data converters, including three 16-bit and four 24-bit Analog-to-Digital converters, along with a 12-bit Digital-to-Analog converter. Connectivity options include EBI/EMI, I2C, SPI, and UART/USART. The device also includes peripherals such as POR, PSM, PWM, a temperature sensor, and a WDT. The ADUC834BCP is supplied in a 56-LFCSP-VQ (8x8) package for surface mounting and operates within a voltage range of 2.7V to 5.25V. This component finds application in various industrial automation and control systems.
Additional Information
Series: MicroConverter® ADuC8xxRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | 56-VFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Speed | 12.58MHz |
| Program Memory Size | 62KB (62K x 8) |
| RAM Size | 2.25K x 8 |
| Operating Temperature | -40°C ~ 85°C |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| Core Processor | 8052 |
| Data Converters | A/D 3x16b, 4x24b; D/A 1x12b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.25V |
| Connectivity | EBI/EMI, I2C, SPI, UART/USART |
| Peripherals | POR, PSM, PWM, Temp Sensor, WDT |
| Supplier Device Package | 56-LFCSP-VQ (8x8) |
| Grade | - |
| Number of I/O | 34 |
| Programmable | Not Verified |
| Qualification | - |
