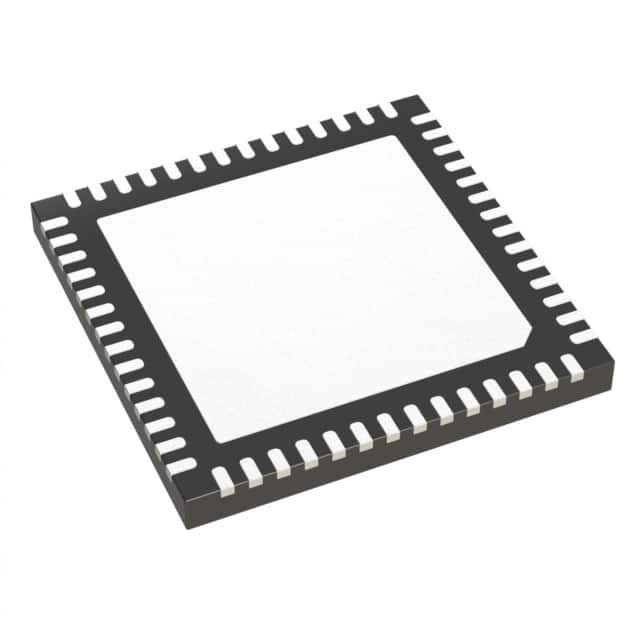

ADUC816BCP
IC MCU 8BIT 8KB FLASH 56LFCSPManufacturer: Analog Devices Inc.
Categories: Microcontrollers
Quality Control: Learn More
Analog Devices Inc. MicroConverter® ADuC8xx series microcontroller, part number ADUC816BCP. This 8-bit microcontroller features an 8052 core operating at 12.58MHz. It offers 8KB of FLASH program memory and 256 bytes of RAM, complemented by 640 bytes of EEPROM. On-chip peripherals include a Precision System Manager (PSM), temperature sensor, and watchdog timer. Connectivity options consist of I2C, SPI, and UART/USART interfaces. The device integrates analog capabilities with seven 16-bit Analog-to-Digital converters and one 12-bit Digital-to-Analog converter. It is housed in a 56-LFCSP (8x8) package suitable for surface mounting. The operating temperature range is -40°C to 85°C. This component is commonly utilized in industrial automation, medical devices, and consumer electronics applications.
Additional Information
Series: MicroConverter® ADuC8xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 56-WFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Speed | 12.58MHz |
| Program Memory Size | 8KB (8K x 8) |
| RAM Size | 256 x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | 640 x 8 |
| Core Processor | 8052 |
| Data Converters | A/D 7x16b; D/A 1x12b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Connectivity | I2C, SPI, UART/USART |
| Peripherals | PSM, Temp Sensor, WDT |
| Supplier Device Package | 56-LFCSP (8x8) |
| Grade | - |
| Number of I/O | 34 |
| Programmable | Not Verified |
| Qualification | - |
