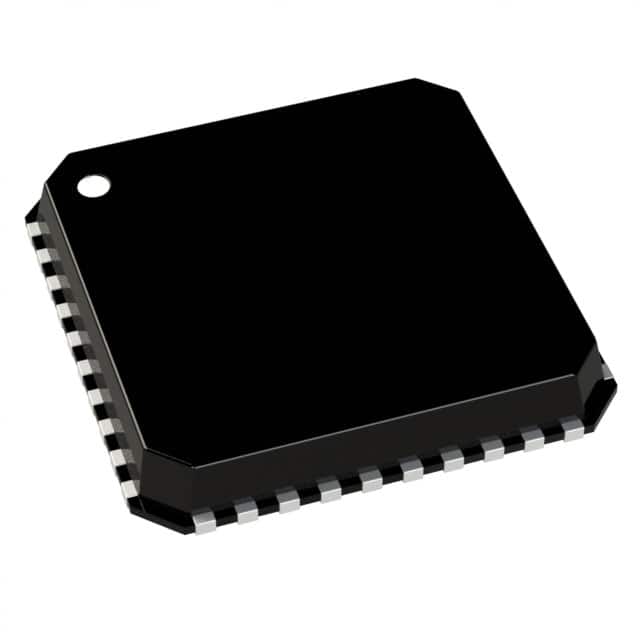

ADUC7021BCPZ62-RL
IC MCU 16/32B 62KB FLASH 40LFCSPManufacturer: Analog Devices Inc.
Categories: Microcontrollers
Quality Control: Learn More
Analog Devices Inc. ADUC7021BCPZ62-RL is a 16/32-Bit ARM7® MicroConverter® microcontroller featuring 62KB of FLASH program memory and 2KB of RAM. This device operates at 44MHz and includes integrated Analog-to-Digital converters (8x12b) and Digital-to-Analog converters (2x12b), along with peripherals such as PLA, PWM, PSM, a temperature sensor, and WDT. Connectivity options include EBI/EMI, I2C, SPI, and UART/USART. The microcontroller is housed in a 40-LFCSP-VQ (6x6) package for surface mounting and operates from a 2.7V to 3.6V supply. The ADUC7021BCPZ62-RL is suitable for applications in industrial automation, motor control, and medical instrumentation. It is supplied on tape and reel.
Additional Information
Series: MicroConverter® ADuC7xxxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-VFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Speed | 44MHz |
| Program Memory Size | 62KB (31K x16) |
| RAM Size | 2K x 32 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM7® |
| Data Converters | A/D 8x12b; D/A 2x12b |
| Core Size | 16/32-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Connectivity | EBI/EMI, I2C, SPI, UART/USART |
| Peripherals | PLA, PWM, PSM, Temp Sensor, WDT |
| Supplier Device Package | 40-LFCSP-VQ (6x6) |
| Number of I/O | 13 |
| Programmable | Not Verified |
