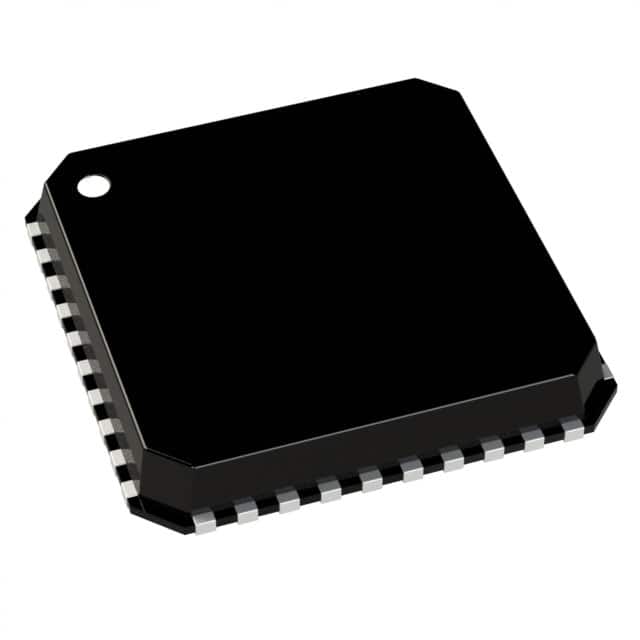

ADUC7021BCPZ32-RL7
IC MCU 16/32B 32KB FLASH 40LFCSPManufacturer: Analog Devices Inc.
Categories: Microcontrollers
Quality Control: Learn More
The Analog Devices Inc. ADUC7021BCPZ32-RL7 is a 16/32-bit ARM7® MicroConverter® microcontroller featuring 32KB of FLASH program memory (16K x 16) and 1K x 32 RAM. This device operates at a speed of 44MHz and includes integrated 8x12-bit Analog-to-Digital Converters and 2x12-bit Digital-to-Analog Converters. Connectivity options include EBI/EMI, I2C, SPI, and UART/USART. Peripherals such as PLA, PWM, PSM, a temperature sensor, and WDT are also incorporated. The microcontroller is supplied in a 40-LFCSP-VQ (6x6) package, suitable for surface mount applications, and is delivered on a tape and reel. Operating within a temperature range of -40°C to 125°C (TA), this component is utilized in various industrial and automotive applications. It requires a supply voltage between 2.7V and 3.6V.
Additional Information
Series: MicroConverter® ADuC7xxxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-VFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Speed | 44MHz |
| Program Memory Size | 32KB (16K x 16) |
| RAM Size | 1K x 32 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM7® |
| Data Converters | A/D 8x12b; D/A 2x12b |
| Core Size | 16/32-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Connectivity | EBI/EMI, I2C, SPI, UART/USART |
| Peripherals | PLA, PWM, PSM, Temp Sensor, WDT |
| Supplier Device Package | 40-LFCSP-VQ (6x6) |
| Number of I/O | 13 |
| Programmable | Not Verified |
