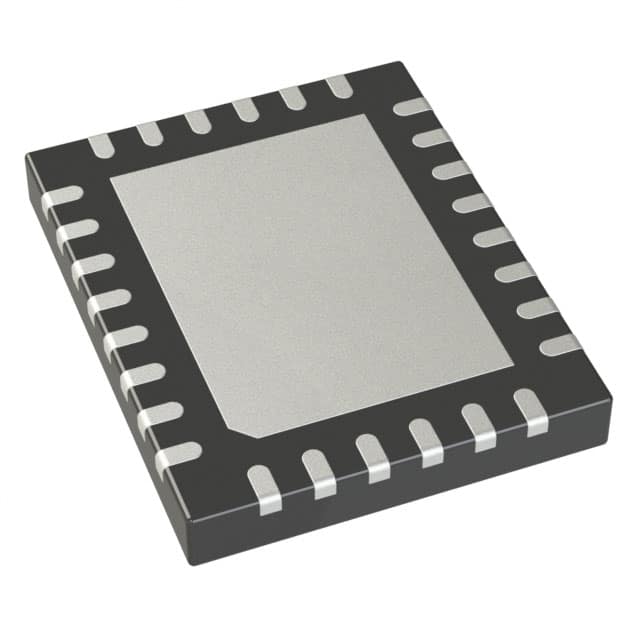

LT3694EUFD#TRPBF
IC REG TRIPLE BUCK/LINEAR 28QFNManufacturer: Analog Devices Inc.
Categories: Linear + Switching
Quality Control: Learn More
The Analog Devices Inc. LT3694EUFD-TRPBF is a versatile power management IC featuring a triple output configuration. It integrates one step-down (buck) switching regulator with a maximum output current of 2.6A and adjustable output voltage from 0.75V to 16V, operating at switching frequencies between 250kHz and 2.5MHz. Complementing the buck regulator are two independent linear (LDO) regulators, each providing voltage control. This device supports a wide input voltage range of 4V to 36V and operates across an industrial temperature range of -40°C to 125°C. The LT3694EUFD-TRPBF incorporates a sequencer for controlled power-up and is supplied in a 28-QFN (4x5) package, suitable for surface mount applications and delivered on tape and reel. Its architecture makes it suitable for applications in automotive, industrial control, and communication systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 4V ~ 36V |
| Frequency - Switching | 250kHz ~ 2.5MHz |
| Topology | Step-Down (Buck) (1), Linear (LDO) (2) |
| Supplier Device Package | 28-QFN (4x5) |
| Voltage/Current - Output 1 | 0.75V ~ 16V, 2.6A |
| Voltage/Current - Output 2 | Controller |
| Voltage/Current - Output 3 | Controller |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | Yes |
| Number of Outputs | 3 |
