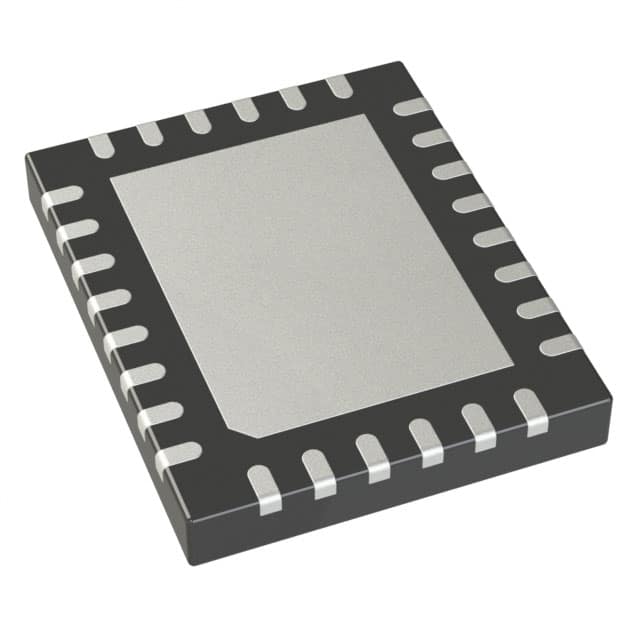

LT3694EUFD#PBF
IC REG TRIPLE BUCK/LINEAR 28QFNManufacturer: Analog Devices Inc.
Categories: Linear + Switching
Quality Control: Learn More
The Analog Devices Inc. LT3694EUFD-PBF is a versatile power management IC featuring a triple output configuration. It integrates one step-down (buck) converter and two linear (LDO) regulators within a 28-QFN (4x5) package. This component supports a wide input voltage range of 4V to 36V and operates with switching frequencies adjustable from 250kHz up to 2.5MHz. The buck output can deliver up to 2.6A with adjustable output voltages from 0.75V to 16V. The device includes a sequencer for controlled power-up and is suitable for surface mount applications. Its operating temperature range is -40°C to 125°C, making it applicable in automotive and industrial sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 4V ~ 36V |
| Frequency - Switching | 250kHz ~ 2.5MHz |
| Topology | Step-Down (Buck) (1), Linear (LDO) (2) |
| Supplier Device Package | 28-QFN (4x5) |
| Voltage/Current - Output 1 | 0.75V ~ 16V, 2.6A |
| Voltage/Current - Output 2 | Controller |
| Voltage/Current - Output 3 | Controller |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | Yes |
| Number of Outputs | 3 |
