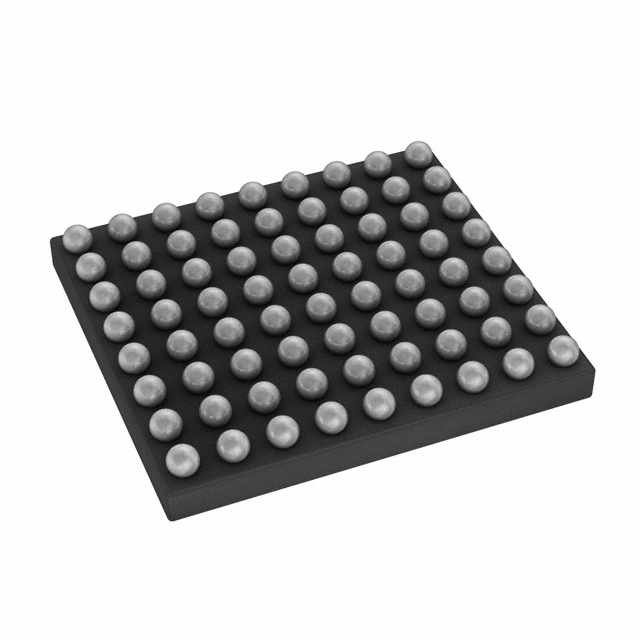

ADP5080ACBZ-1-RL
IC REG 9OUT BUCK/BST/LNR 72WLCSPManufacturer: Analog Devices Inc.
Categories: Linear + Switching
Quality Control: Learn More
The Analog Devices Inc. ADP5080ACBZ-1-RL is a highly integrated power management IC featuring nine independent voltage regulators. This device combines six step-down (buck) converters, one step-up (boost) converter, and three linear (LDO) regulators, offering a versatile solution for complex power architectures. Operating with an input voltage range of 4V to 15V, the ADP5080ACBZ-1-RL supports flexible power sourcing. The switching frequency is adjustable between 750KHz and 2MHz, allowing optimization for efficiency and component size. The 72-WLCSP (4.46x3.96) package provides a compact footprint suitable for space-constrained applications. This component is designed for use in demanding applications across various industries, including industrial automation, consumer electronics, and telecommunications equipment. The ADP5080ACBZ-1-RL is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 72-WFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Operating Temperature | -20°C ~ 85°C |
| Voltage - Supply | 4V ~ 15V |
| Frequency - Switching | 750KHz ~ 2MHz |
| Topology | Step-Down (Buck) (6), Step-Up (Boost) (1), Linear (LDO) (3) |
| Supplier Device Package | 72-WLCSP (4.46x3.96) |
| Voltage/Current - Output 1 | 0.8V ~ 1.2V, 3A |
| Voltage/Current - Output 2 | 1V ~ 3.3V, 1.15A |
| Voltage/Current - Output 3 | 1.2V ~ 1.8V, 1.5A |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | No |
| Number of Outputs | 9 |
