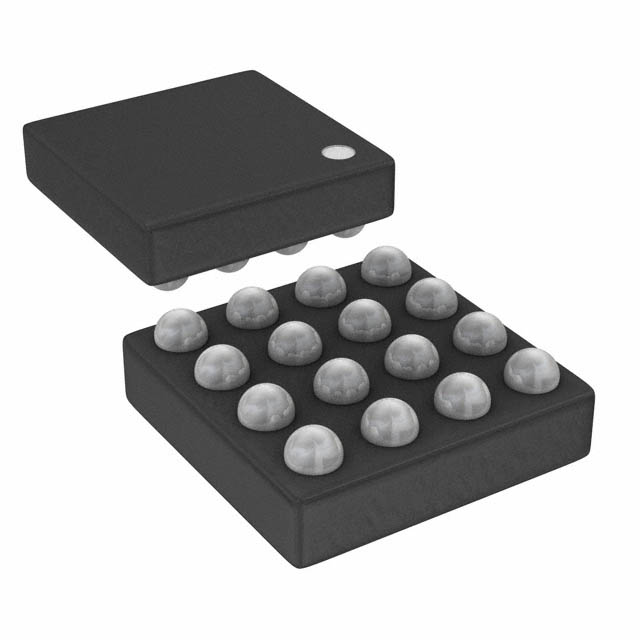

ADP5022ACBZ-2-R7
IC REG TRPL BCK/LNR SYNC 16WLCSPManufacturer: Analog Devices Inc.
Categories: Linear + Switching
Quality Control: Learn More
Analog Devices Inc. ADP5022ACBZ-2-R7 is a highly integrated power management IC featuring three distinct voltage regulators. This component incorporates two synchronous step-down (buck) converters operating at 3MHz, capable of delivering up to 600mA each, and a single linear (LDO) regulator providing 150mA. The specific output configurations are 1.2V and 1.8V for the buck converters, and 2.8V for the LDO. Designed for surface mounting, it is supplied in a compact 16-WLCSP (2.08x2.08) package, delivered on tape and reel. The device operates across a wide temperature range of -40°C to 125°C and accepts input voltages from 2.3V to 5.5V. This versatile PMIC finds application in portable electronics, industrial control systems, and advanced sensor modules requiring efficient and compact power solutions.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 2.3V ~ 5.5V |
| Frequency - Switching | 3MHz |
| Topology | Step-Down (Buck) Synchronous (2), Linear (LDO) (1) |
| Supplier Device Package | 16-WLCSP (2.08x2.08) |
| Voltage/Current - Output 1 | 1.2V, 600mA |
| Voltage/Current - Output 2 | 1.8V, 600mA |
| Voltage/Current - Output 3 | 2.8V, 150mA |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | No |
| Number of Outputs | 3 |
