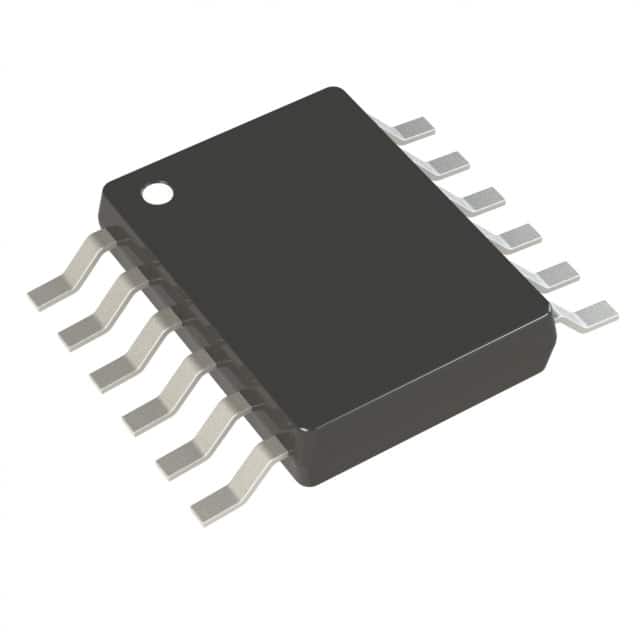

LT3094HMSE#TRPBF
IC REG LIN NEG ADJ 500MA 12MSOPManufacturer: Analog Devices Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Negative Adjustable 1 Output 500mA 12-MSOP-EP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-TSSOP (0.118"", 3.00mm Width) Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 500mA |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Negative |
| Current - Quiescent (Iq) | 2.35 mA |
| Voltage - Input (Max) | -2.3V |
| Number of Regulators | 1 |
| Supplier Device Package | 12-MSOP-EP |
| Voltage - Output (Max) | 0V |
| Voltage - Output (Min/Fixed) | -19.5V |
| Control Features | Enable, Power Good, Soft Start |
| PSRR | 108dB ~ 28dB (120Hz ~ 10MHz) |
| Voltage Dropout (Max) | 0.41V @ 500mA |
| Protection Features | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Current - Supply (Max) | 23 mA |
Request a Quote
