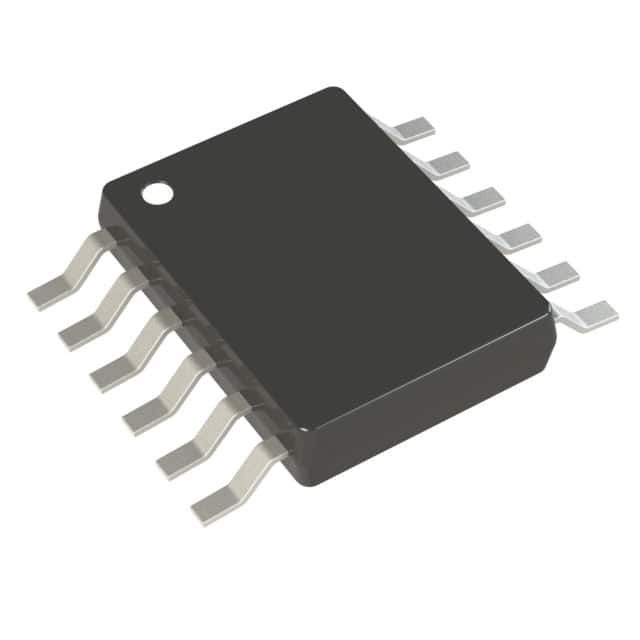

LT3090MPMSE#TRPBF
IC REG LIN NEG ADJ 600MA 12MSOPManufacturer: Analog Devices Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Analog Devices Inc. LT3090MPMSE-TRPBF is a negative adjustable linear voltage regulator designed for high-performance applications. This component delivers a regulated output current of 600mA with a low dropout voltage of 0.45V at its maximum current. It features an adjustable output voltage range from 0V down to -32V, with a maximum input voltage of -36V. The device offers robust protection mechanisms including overcurrent, overtemperature, reverse polarity, and short-circuit protection. Quiescent current is rated at 50.5 µA. The LT3090MPMSE-TRPBF includes current limit and enable control features and boasts a high power supply rejection ratio (PSRR) of 85dB to 20dB across a frequency range of 120Hz to 1MHz. Packaged in a 12-MSOP-EP (Exposed Pad) it is suitable for surface mount applications and operates within an extended temperature range of -55°C to 150°C. This regulator is utilized across various industries including telecommunications, industrial, and automotive systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-TSSOP (0.118"", 3.00mm Width) Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 600mA |
| Operating Temperature | -55°C ~ 150°C |
| Output Configuration | Negative |
| Current - Quiescent (Iq) | 50.5 µA |
| Voltage - Input (Max) | -36V |
| Number of Regulators | 1 |
| Supplier Device Package | 12-MSOP-EP |
| Voltage - Output (Max) | -32V |
| Voltage - Output (Min/Fixed) | 0V |
| Control Features | Current Limit, Enable |
| PSRR | 85dB ~ 20dB (120Hz ~ 1MHz) |
| Voltage Dropout (Max) | 0.45V @ 600mA |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
