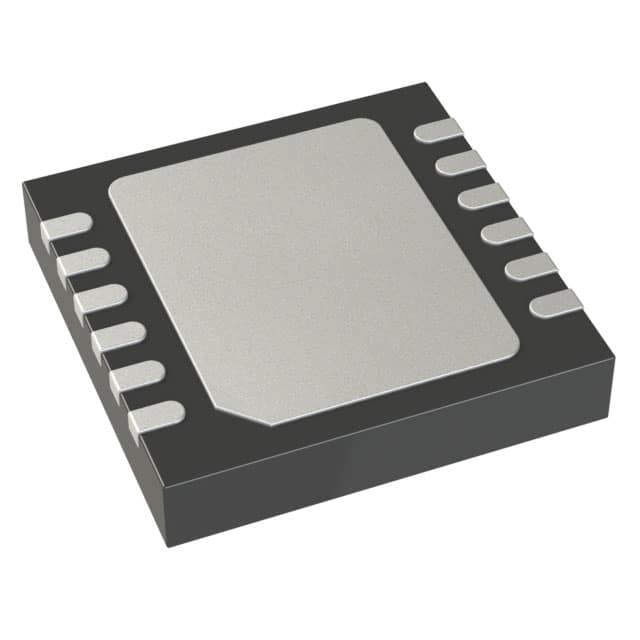

LT3081IDF#TRPBF
IC REG LINEAR POS ADJ 1.5A 12DFNManufacturer: Analog Devices Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Adjustable 1 Output 1.5A 12-DFN (4x4)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WFDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 1.5A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 50 µA |
| Voltage - Input (Max) | 36V |
| Number of Regulators | 1 |
| Supplier Device Package | 12-DFN (4x4) |
| Voltage - Output (Max) | 34.5V |
| Voltage - Output (Min/Fixed) | 0V |
| Control Features | Current Limit |
| PSRR | 90dB ~ 20dB (120Hz ~ 1MHz) |
| Voltage Dropout (Max) | 1.5V @ 1.5A |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Short Circuit |
| Current - Supply (Max) | 5 mA |
Request a Quote
