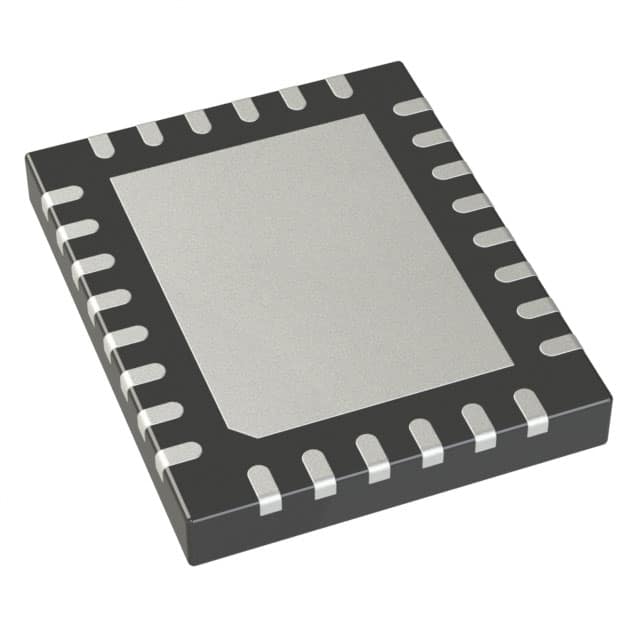

LT3071EUFD#TRPBF
IC REG LIN POS PROG 5A 28QFNManufacturer: Analog Devices Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Analog Devices Inc. LT3071EUFD-TRPBF is a high-performance linear voltage regulator IC. This positive, programmable output device delivers a continuous 5A current with a typical dropout voltage of 0.15V at 5A. It features a wide input voltage range, capable of accepting up to 3V, and offers an adjustable output voltage from 0.8V to 1.8V. The LT3071EUFD-TRPBF includes advanced control features such as Enable, Power Good, and Soft Start for precise power sequencing. Protection mechanisms are incorporated, including Over Current, Over Temperature, Reverse Polarity, and Under Voltage Lockout (UVLO). The device exhibits a high Power Supply Rejection Ratio (PSRR) of 66dB at 120Hz. Packaged in a 28-QFN (4x5) with an exposed pad, this component is suitable for surface mount applications. Its quiescent current is 1.5 mA, with a supply current of up to 10 mA. The operating temperature range is -40°C to 125°C. This regulator is commonly utilized in high-power computing, telecommunications infrastructure, and industrial power supply applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-WFQFN Exposed Pad |
| Output Type | Programmable |
| Mounting Type | Surface Mount |
| Current - Output | 5A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 1.5 mA |
| Voltage - Input (Max) | 3V |
| Number of Regulators | 1 |
| Supplier Device Package | 28-QFN (4x5) |
| Voltage - Output (Max) | 1.8V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Control Features | Enable, Power Good, Soft Start |
| PSRR | 66dB (120Hz) |
| Voltage Dropout (Max) | 0.15V @ 5A |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
| Current - Supply (Max) | 10 mA |
