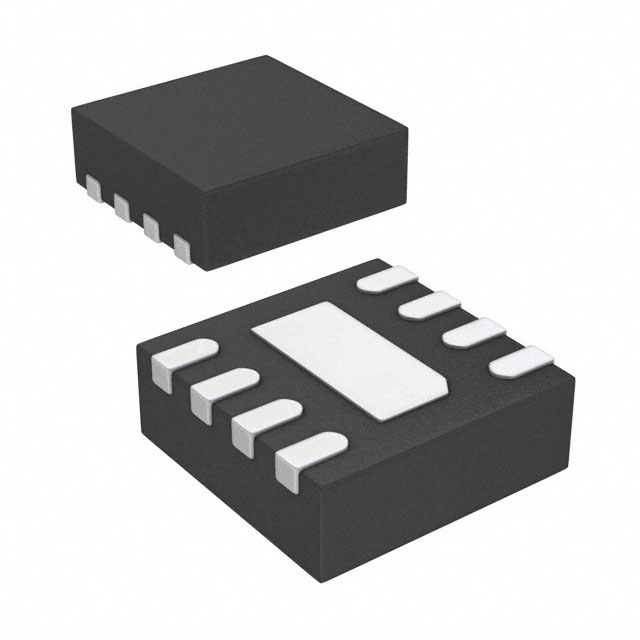

LT3060EDC-3.3
IC REG LINEAR 3.3V 100MA 8DFNManufacturer: Analog Devices Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Analog Devices Inc. LT3060EDC-3-3 is a high-performance, low-noise, positive linear voltage regulator IC. It provides a fixed 3.3V output with a 100mA current capability, featuring a low 80 µA quiescent current. The device offers excellent power supply rejection ratio (PSRR) of 70dB at 120Hz and incorporates control features such as an enable pin and soft-start functionality. Protection mechanisms include over-current, over-temperature, and reverse polarity protection. With a maximum input voltage of 45V and a dropout voltage of 0.51V at 100mA, this regulator is suitable for a wide operating temperature range of -40°C to 125°C. The LT3060EDC-3-3 is packaged in an 8-DFN (2x2) surface-mount package, ideal for applications in automotive, industrial, and portable electronics where efficient and stable voltage regulation is critical.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-WFDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 100mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 80 µA |
| Voltage - Input (Max) | 45V |
| Number of Regulators | 1 |
| Supplier Device Package | 8-DFN (2x2) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Control Features | Enable, Soft Start |
| PSRR | 70dB (120Hz) |
| Voltage Dropout (Max) | 0.51V @ 100mA |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Current - Supply (Max) | 4 mA |
