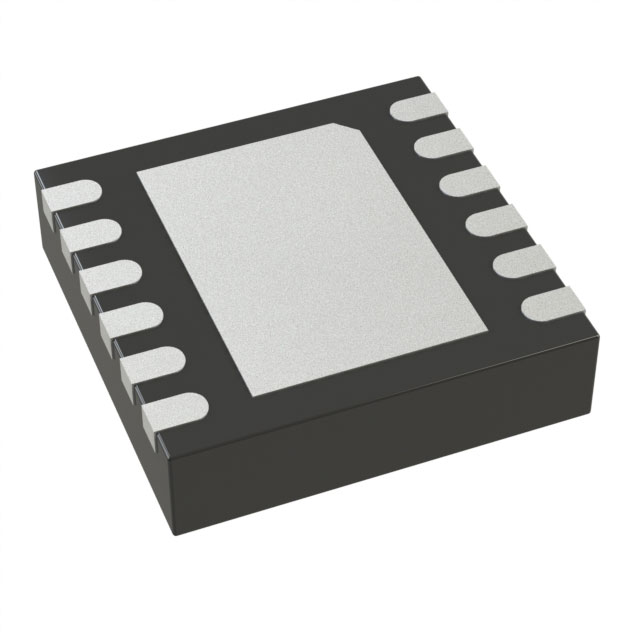

LT3045EDD-1#TRPBF
IC REG LIN POS PROG 500MA 12DFNManufacturer: Analog Devices Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Adjustable 1 Output 500mA 12-DFN (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WFDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 500mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 20 µA |
| Voltage - Input (Max) | 20V |
| Number of Regulators | 1 |
| Supplier Device Package | 12-DFN (3x3) |
| Voltage - Output (Max) | 15V |
| Voltage - Output (Min/Fixed) | 0V |
| Control Features | Enable, Power Good, Soft Start |
| PSRR | 117dB ~ 53dB (120Hz ~ 10MHz) |
| Voltage Dropout (Max) | 0.45V @ 500mA |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
| Current - Supply (Max) | 25 mA |
Request a Quote
