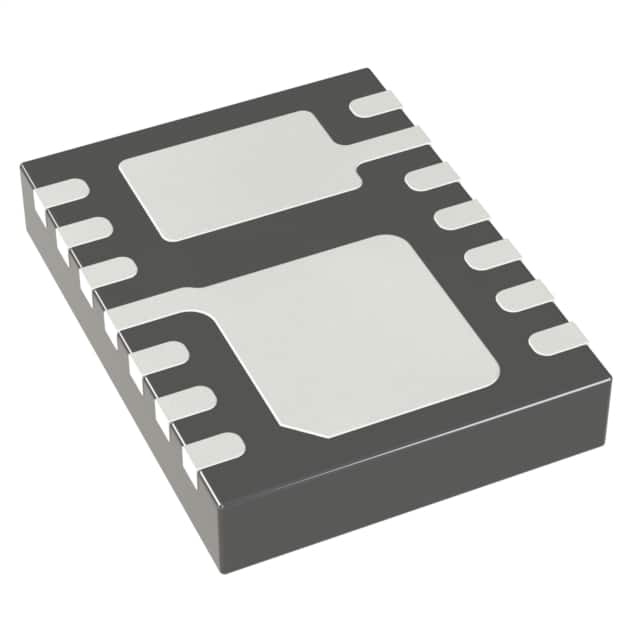

LT3032EDE#PBF
IC REG LINEAR POS/NEG ADJ 14DFNManufacturer: Analog Devices Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive and Negative Adjustable 2 Output 150mA, 150mA 14-DFN (4x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-PowerWFDFN |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 150mA, 150mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive and Negative |
| Voltage - Input (Max) | ±20V |
| Number of Regulators | 2 |
| Supplier Device Package | 14-DFN (4x3) |
| Voltage - Output (Max) | ±20V |
| Voltage - Output (Min/Fixed) | ±1.22V |
| Control Features | Enable |
| PSRR | 68dB (120Hz), 54dB (120Hz) |
| Voltage Dropout (Max) | 0.27V @ 150mA (Typ), 0.3V @ 150mA (Typ) |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
