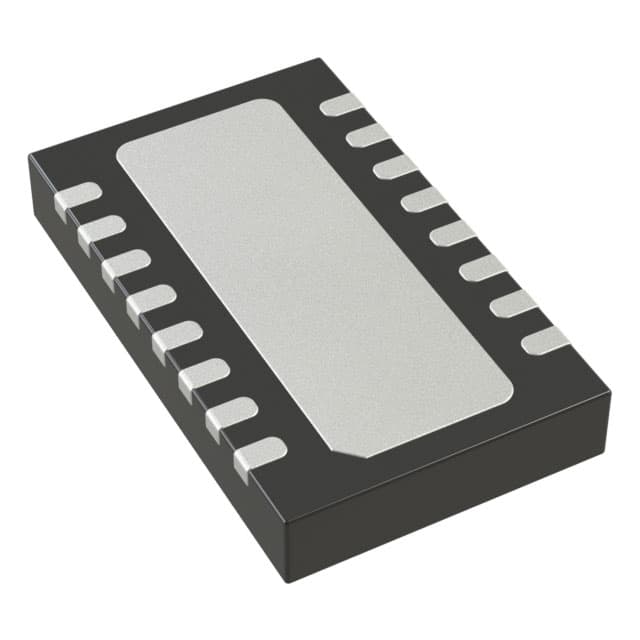

LT3022IDHC#TRPBF
IC REG LINEAR POS ADJ 1A 16DFNManufacturer: Analog Devices Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Adjustable 1 Output 1A 16-DFN (5x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 3.5 mA |
| Voltage - Input (Max) | 10V |
| Number of Regulators | 1 |
| Supplier Device Package | 16-DFN (5x3) |
| Voltage - Output (Max) | 9.5V |
| Voltage - Output (Min/Fixed) | 0.2V |
| Control Features | Enable |
| PSRR | 70dB (120Hz) |
| Voltage Dropout (Max) | 0.285V @ 1A |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Current - Supply (Max) | 36 mA |
