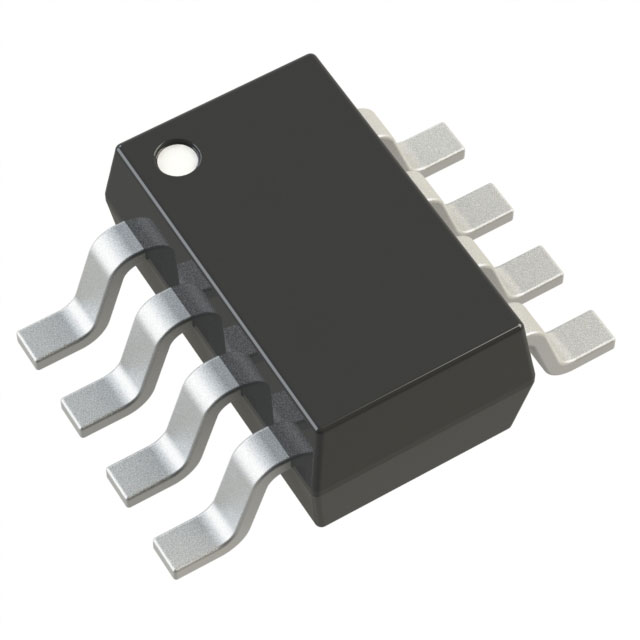

LT3009ESC8
IC REG LIN POS ADJ 20MA SC70-8Manufacturer: Analog Devices Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Analog Devices Inc. LT3009ESC8 is a positive adjustable linear voltage regulator IC delivering up to 20mA output current. This device features a low quiescent current of 6 µA and a low dropout voltage of 0.45V at 20mA, making it suitable for power-sensitive applications. The output voltage is adjustable from 0.6V to 19.5V, with a maximum input voltage of 20V. Protection features include over-current, over-temperature, and reverse polarity protection. The LT3009ESC8 includes an enable pin for power sequencing and offers excellent power supply rejection ratio (PSRR) of 72dB at 120Hz. It is supplied in an 8-pin SC-70 (SC-70-8) surface-mount package, commonly found in portable electronics, battery-powered devices, and sensor interfaces. The operating temperature range is -40°C to 125°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-VFSOP (0.049"", 1.25mm Width) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 20mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 6 µA |
| Voltage - Input (Max) | 20V |
| Number of Regulators | 1 |
| Supplier Device Package | SC-70-8 |
| Voltage - Output (Max) | 19.5V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Control Features | Enable |
| PSRR | 72dB (120Hz) |
| Voltage Dropout (Max) | 0.45V @ 20mA |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Current - Supply (Max) | 1 mA |
