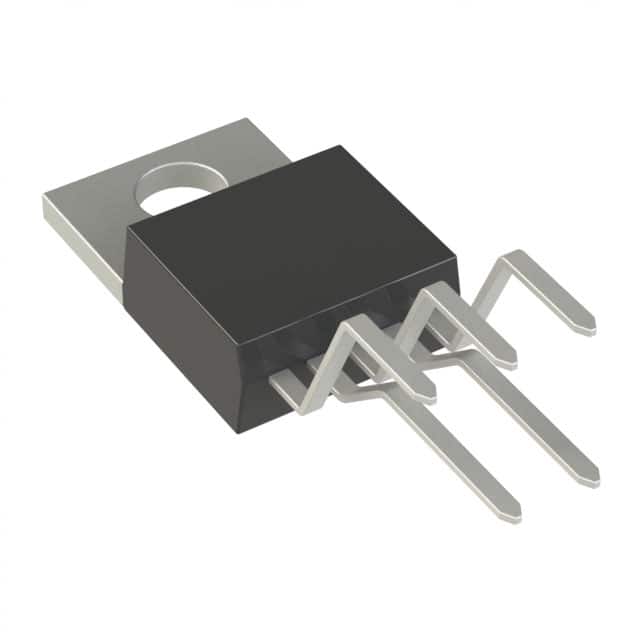

LT1963AET-1.8#30PBF
IC REG LIN 1.8V 1.5A TO220-5Manufacturer: Analog Devices Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Analog Devices Inc. LT1963AET-1-8-30PBF is a positive fixed 1.8V linear voltage regulator. This component delivers 1.5A output current with a maximum dropout voltage of 0.55V at 1.5A. It features an enable pin for control and includes over current, over temperature, and reverse polarity protection. The device operates over a temperature range of -40°C to 125°C and offers a power supply rejection ratio (PSRR) of 63dB at 120Hz. Input voltage can be up to 20V, with a quiescent current of 1.5mA. The LT1963AET-1-8-30PBF is housed in a TO-220-5 package, suitable for through-hole mounting. Applications include power supplies for automotive, industrial, and communication systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-5 |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Current - Output | 1.5A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 1.5 mA |
| Voltage - Input (Max) | 20V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220-5 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.8V |
| Control Features | Enable |
| PSRR | 63dB (120Hz) |
| Voltage Dropout (Max) | 0.55V @ 1.5A |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Current - Supply (Max) | 120 mA |
