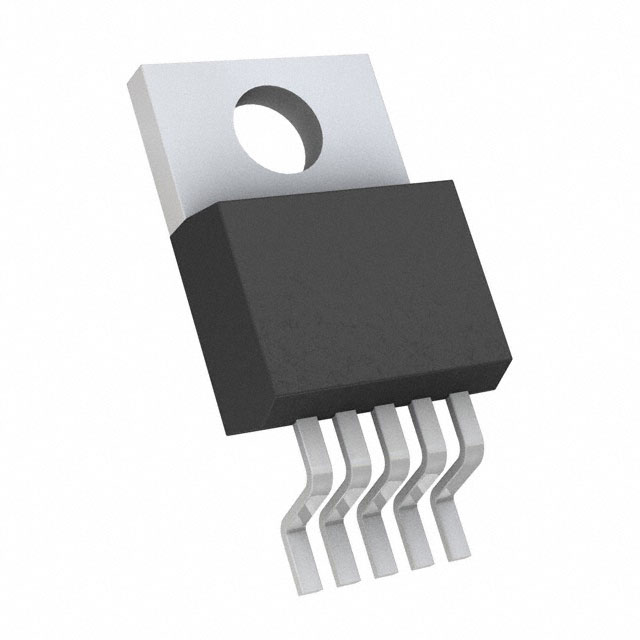

LT1764AET#33PBF
IC REG LIN POS ADJ 3A TO220-5Manufacturer: Analog Devices Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Analog Devices Inc. LT1764AET-33PBF is a high-performance positive linear voltage regulator. This device provides a 3A output current with a low dropout voltage of 0.66V at 3A. The output voltage is adjustable, with a minimum output of 1.21V. Key features include over-current, over-temperature, and reverse polarity protection. The regulator offers a power supply rejection ratio (PSRR) of 63dB at 120Hz and an input voltage range up to 20V. It operates within an extended temperature range of -40°C to 125°C. The LT1764AET-33PBF is supplied in a TO-220-5 package and is suitable for applications in telecommunications, industrial power supplies, and automotive systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-5 Formed Leads |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 1.5 mA |
| Voltage - Input (Max) | 20V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220-5 Flow 33 |
| Voltage - Output (Max) | 20V |
| Voltage - Output (Min/Fixed) | 1.21V |
| Control Features | Enable |
| PSRR | 63dB (120Hz) |
| Voltage Dropout (Max) | 0.66V @ 3A |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Current - Supply (Max) | 200 mA |
