LT1185IT#40PBF
IC REG LIN POS/NEG ADJ 3A TO220Manufacturer: Analog Devices Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

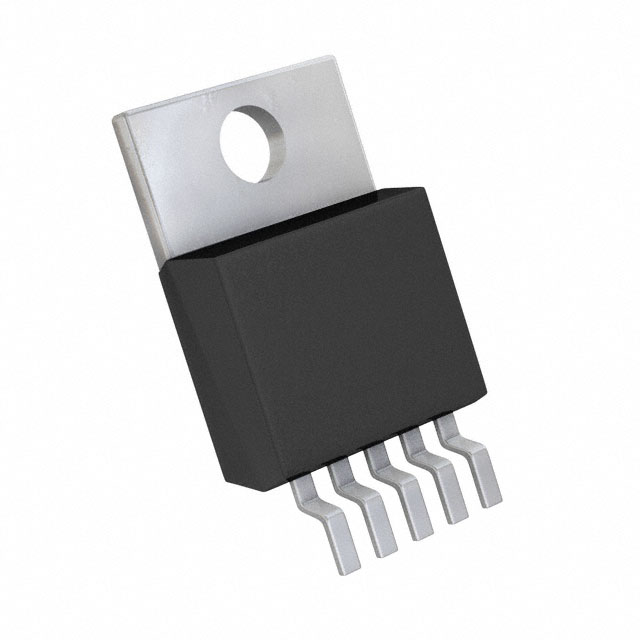

Analog Devices Inc. LT1185IT-40PBF is a high-performance linear voltage regulator IC. This adjustable positive or negative regulator features a single output capable of delivering up to 3A. Designed for robust operation, it offers a voltage dropout of 1V at 3A and an input voltage range up to -35V, with output voltage adjustability from ±2.5V up to ±25V. The device includes overcurrent protection for enhanced reliability. With an operating temperature range of -40°C to 85°C, the LT1185IT-40PBF is suitable for demanding applications in industrial and automotive sectors. It is supplied in a TO-220-5 package with formed leads for through-hole mounting.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-5 Formed Leads |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive or Negative |
| Current - Quiescent (Iq) | 3.5 mA |
| Voltage - Input (Max) | -35V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220-5 Flow 40 |
| Voltage - Output (Max) | ±25V |
| Voltage - Output (Min/Fixed) | ±2.5V |
| Control Features | - |
| PSRR | - |
| Voltage Dropout (Max) | 1V @ 3A |
| Protection Features | Over Current |
