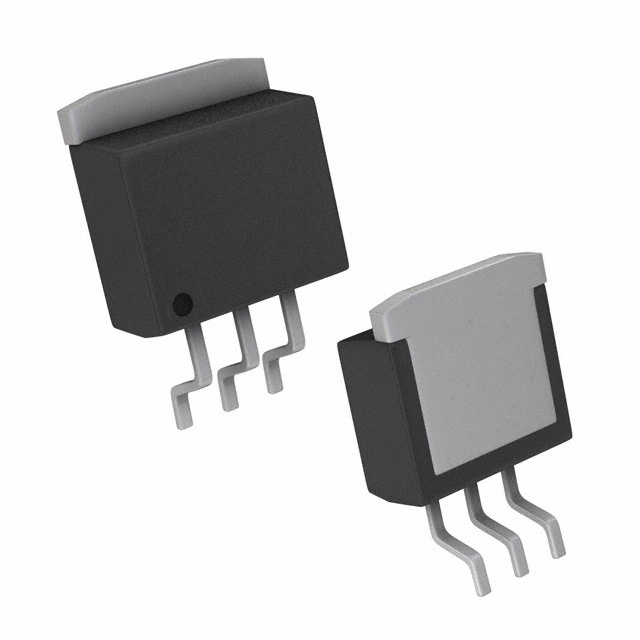

LT1086CM-3.3#PBF
IC REG LINEAR 3.3V 1.5A D2PAK-3Manufacturer: Analog Devices Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Fixed 1 Output 1.5A DDPAK-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1.5A |
| Operating Temperature | 0°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 10 mA |
| Voltage - Input (Max) | 20V |
| Number of Regulators | 1 |
| Supplier Device Package | DDPAK-3 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Control Features | - |
| PSRR | 72dB (120Hz) |
| Voltage Dropout (Max) | 1.5V @ 1.5A |
| Protection Features | Over Current, Over Temperature |
