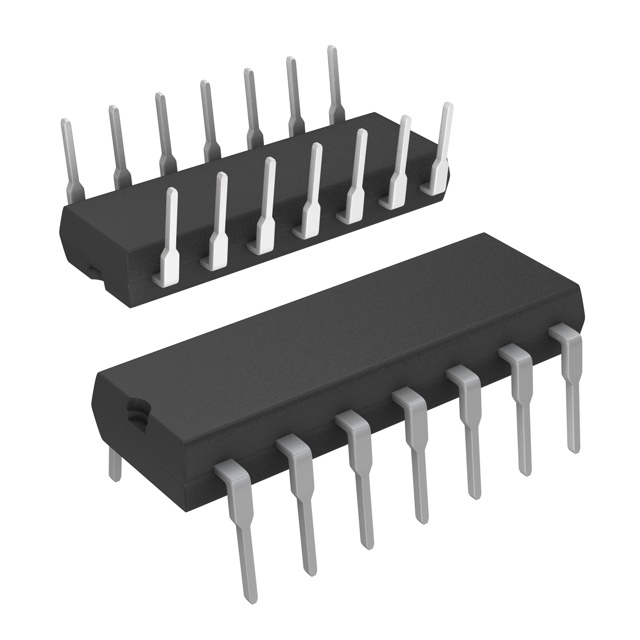

LT1020CN#PBF
IC REG LIN POS ADJ 125MA 14DIPManufacturer: Analog Devices Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Adjustable 1 Output 125mA 14-PDIP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Current - Output | 125mA |
| Operating Temperature | 0°C ~ 100°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 95 µA |
| Voltage - Input (Max) | 36V |
| Number of Regulators | 1 |
| Supplier Device Package | 14-PDIP |
| Voltage - Output (Max) | 35.15V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Control Features | Current Limit, Enable |
| PSRR | - |
| Voltage Dropout (Max) | 0.85V @ 125mA |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Current - Supply (Max) | 20 mA |
