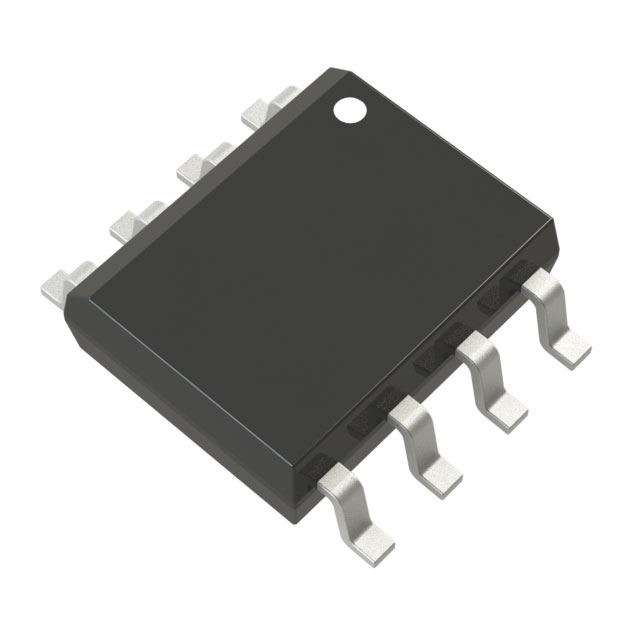

ADP3334AR-REEL7
IC REG LINEAR 1.5V 500MA 8SOICManufacturer: Analog Devices Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Analog Devices Inc. ADP3334AR-REEL7 is a low dropout (LDO) linear voltage regulator, featuring the anyCAP® technology for enhanced stability. This positive adjustable output regulator provides 500mA of output current with a maximum input voltage of 11V. The output voltage can be adjusted, with a minimum fixed output of 1.5V and a maximum output of 10V. Key features include a low quiescent current of 130 µA and a dropout voltage of 0.4V at 500mA. Protection mechanisms such as over-current and over-temperature are integrated. The device is supplied in an 8-SOIC package suitable for surface mounting. Applications include consumer electronics, telecommunications infrastructure, and industrial control systems.
Additional Information
Series: anyCAP®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 500mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 130 µA |
| Voltage - Input (Max) | 11V |
| Number of Regulators | 1 |
| Supplier Device Package | 8-SOIC |
| Voltage - Output (Max) | 10V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Control Features | Feedback, Shutdown |
| PSRR | - |
| Voltage Dropout (Max) | 0.4V @ 500mA |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 10 mA |
