ADP1765ACPZ-R7
IC REG LINEAR POS ADJ 5A 16LFCSPManufacturer: Analog Devices Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

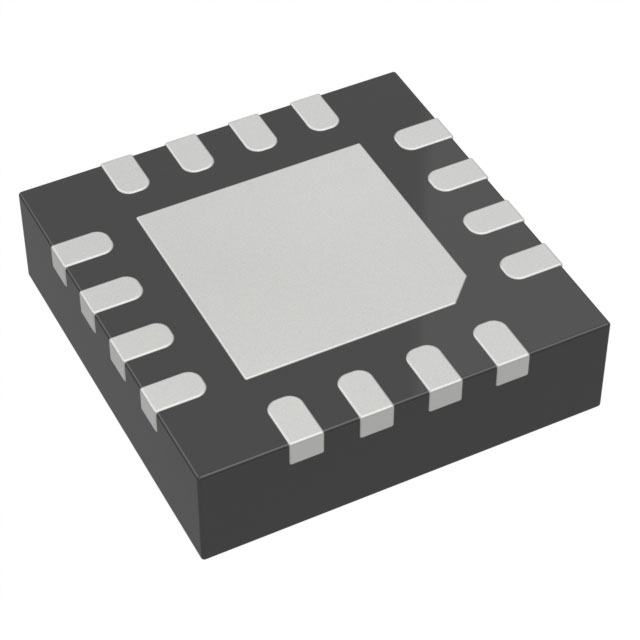

Linear Voltage Regulator IC Positive Adjustable 1 Output 5A 16-LFCSP (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFQFN Exposed Pad, CSP |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 5A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 17 mA |
| Voltage - Input (Max) | 1.98V |
| Number of Regulators | 1 |
| Supplier Device Package | 16-LFCSP (3x3) |
| Voltage - Output (Max) | 1.5V |
| Voltage - Output (Min/Fixed) | 0.5V |
| Control Features | Enable, Power Good, Soft Start |
| PSRR | 61dB ~ 33dB (10kHz ~ 1MHz) |
| Voltage Dropout (Max) | - |
| Protection Features | Current Limit, Thermal Overload |
| Current - Supply (Max) | 25 mA |
Request a Quote
