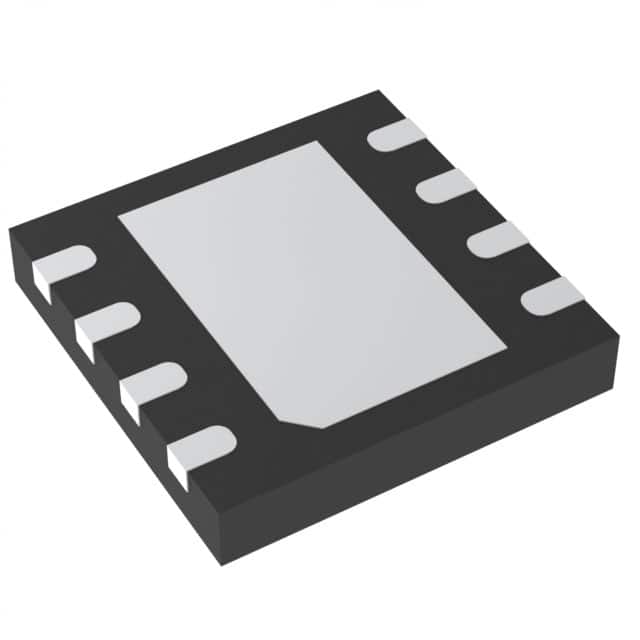

ADM7151ACPZ-04-R7
IC REG LIN POS ADJ 800MA 8LFCSPManufacturer: Analog Devices Inc.
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The Analog Devices Inc. ADM7151ACPZ-04-R7 is an adjustable positive linear voltage regulator IC offering an 800mA output current. This component features a low quiescent current of 7mA and a maximum input voltage of 16V. Designed for demanding applications, it provides excellent power supply rejection ratio (PSRR) performance, ranging from 94dB at 1kHz to 53dB at 1MHz. The device includes over-temperature and short-circuit protection for enhanced reliability. Its adjustable output voltage can be set between 1.5V and 5.1V. The ADM7151ACPZ-04-R7 is housed in an 8-LFCSP-WD (3x3) package and is supplied on a tape and reel (TR). Typical applications include industrial automation, medical equipment, and high-performance computing. The voltage dropout is a maximum of 1.2V at 800mA.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WFDFN Exposed Pad, CSP |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 800mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 7 mA |
| Voltage - Input (Max) | 16V |
| Number of Regulators | 1 |
| Supplier Device Package | 8-LFCSP-WD (3x3) |
| Voltage - Output (Max) | 5.1V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Control Features | Enable |
| PSRR | 94dB ~ 53dB (1kHz ~ 1MHz) |
| Voltage Dropout (Max) | 1.2V @ 800mA |
| Protection Features | Over Temperature, Short Circuit |
| Current - Supply (Max) | 12 mA |
