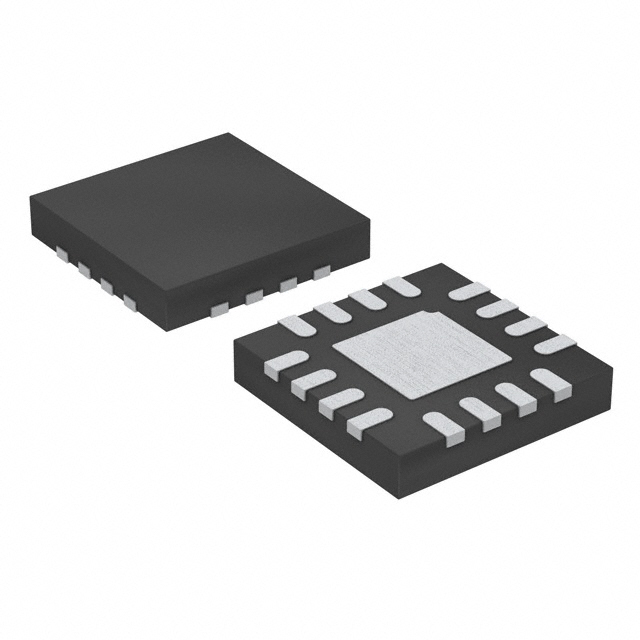

LTC3210EPD-1#TRPBF
IC LED DRV RGLTR /400MA 16QFNManufacturer: Analog Devices Inc.
Categories: LED Drivers
Quality Control: Learn More
Analog Devices Inc. LTC3210EPD-1-TRPBF is a 5-output, switched capacitor (charge pump) LED driver IC. This DC-DC regulator offers high efficiency and is designed for applications requiring precise current control for LED backlighting. The device features an internal switch and operates at an 800kHz switching frequency, enabling the use of small external components. It supports output currents of up to 400mA per channel, with a typical 25mA capability for lower power requirements. The LTC3210EPD-1-TRPBF is supplied in a 16-QFN (3x3) package and is available on tape and reel for automated assembly. This component is suitable for use in portable electronics and display backlighting solutions.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-UFQFN Exposed Pad |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 5 |
| Frequency | 800kHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 25mA, 400mA |
| Internal Switch(s) | Yes |
| Topology | Switched Capacitor (Charge Pump) |
| Supplier Device Package | 16-QFN (3x3) |
| Dimming | - |
| Voltage - Supply (Min) | 2.9V |
| Voltage - Supply (Max) | 4.5V |
