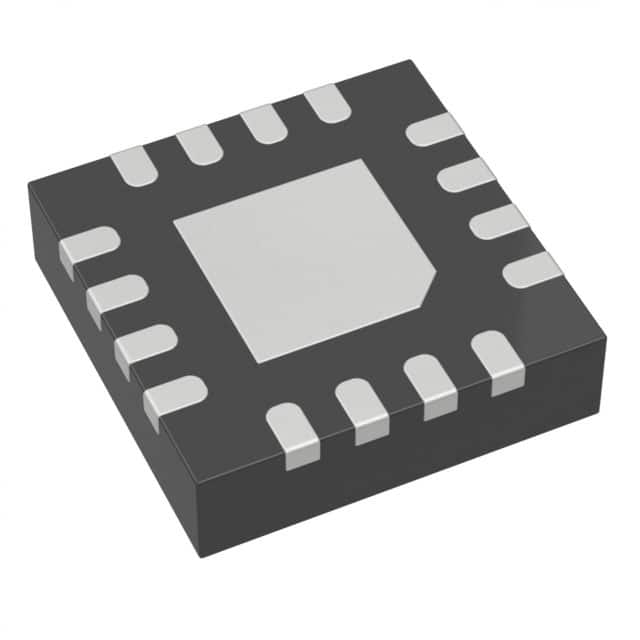

LT3756IUD#TRPBF
IC LED DRIVER CTRLR PWM 16QFNManufacturer: Analog Devices Inc.
Categories: LED Drivers
Quality Control: Learn More
Analog Devices Inc. LT3756IUD-TRPBF is a versatile DC-DC controller designed for LED driver applications. This component supports multiple topologies including Flyback, SEPIC, Step-Down (Buck), and Step-Up (Boost) configurations, offering flexibility for various power management designs. It features a single output channel and is capable of driving high voltage LEDs with an output voltage up to 100V and an input supply range of 6V to 100V. The LT3756IUD-TRPBF integrates both analog and PWM dimming capabilities, allowing for precise control of LED brightness. Its operating frequency can be set between 100kHz and 1MHz. The component is packaged in a 16-QFN (3x3) surface mount configuration and operates within an ambient temperature range of -40°C to 125°C. This device is suitable for applications in automotive lighting, industrial illumination, and general lighting systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFQFN Exposed Pad |
| Voltage - Output | 100V |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Frequency | 100kHz ~ 1MHz |
| Type | DC DC Controller |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Applications | - |
| Current - Output / Channel | - |
| Internal Switch(s) | No |
| Topology | Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) |
| Supplier Device Package | 16-QFN (3x3) |
| Dimming | Analog, PWM |
| Voltage - Supply (Min) | 6V |
| Voltage - Supply (Max) | 100V |
