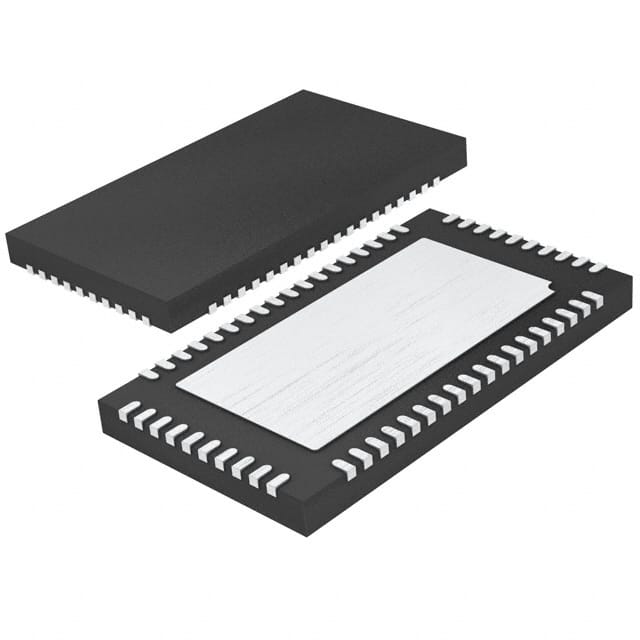

LT3746EUHH#TRPBF
IC LED DRVR CTRLR PWM 30MA 56QFNManufacturer: Analog Devices Inc.
Categories: LED Drivers
Quality Control: Learn More
LED Driver IC 32 Output DC DC Controller Step-Down (Buck) PWM Dimming 30mA 56-QFN (5x9)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 56-WFQFN Exposed Pad |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 32 |
| Frequency | 205Hz ~ 1.05MHz |
| Type | DC DC Controller |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Applications | Backlight, Signage |
| Current - Output / Channel | 30mA |
| Internal Switch(s) | No |
| Topology | Step-Down (Buck) |
| Supplier Device Package | 56-QFN (5x9) |
| Dimming | PWM |
| Voltage - Supply (Min) | 6V |
| Voltage - Supply (Max) | 55V |
