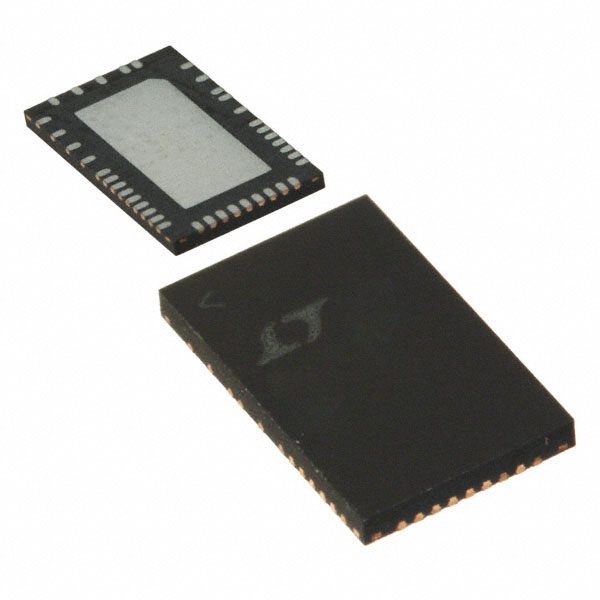

LT3596IUHG#PBF
IC LED DRV RGLTR PWM 100MA 52QFNManufacturer: Analog Devices Inc.
Categories: LED Drivers
Quality Control: Learn More
LED Driver IC 3 Output DC DC Regulator Step-Down (Buck) PWM Dimming 100mA 52-QFN (5x8)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 52-WFQFN, 39 Leads, Exposed Pad |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 3 |
| Frequency | 200kHz ~ 1MHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Applications | Backlight, Signage |
| Current - Output / Channel | 100mA |
| Internal Switch(s) | Yes |
| Topology | Step-Down (Buck) |
| Supplier Device Package | 52-QFN (5x8) |
| Dimming | PWM |
| Voltage - Supply (Min) | 6V |
| Voltage - Supply (Max) | 55V |
Request a Quote
