LT3466EFE
IC LED DRVR RGLTR DIM 16TSSOPManufacturer: Analog Devices Inc.
Categories: LED Drivers
Quality Control: Learn More
Analog Devices Inc. LT3466EFE is a dual-output DC/DC boost LED driver IC. This component features integrated switching regulators capable of delivering up to 400mA per channel, with a maximum output voltage of 39.5V. The device supports analog and PWM dimming for precise light output control. Its 1MHz switching frequency allows for the use of small external components, contributing to a compact solution. Designed for surface-mount applications, the LT3466EFE is housed in a 16-TSSOP-EP package. It is suitable for applications requiring efficient LED illumination, such as backlighting in displays. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |

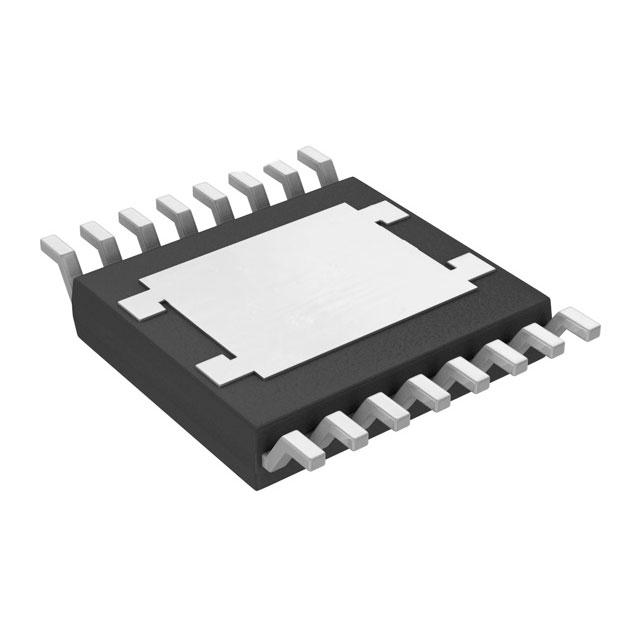

| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Voltage - Output | 39.5V |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Frequency | 1MHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Backlight |
| Current - Output / Channel | 400mA |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 16-TSSOP-EP |
| Dimming | Yes |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 24V |
